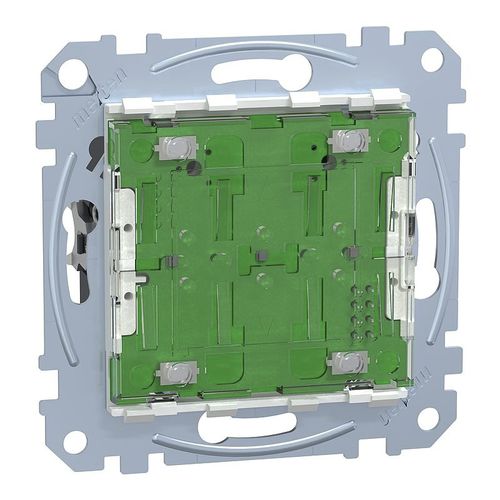

Light dimmer switch MEG5119-0300rockerelectronicrecessed
Add to favorites
Compare this product
Characteristics
- Use
- light
- Type
- rocker
- Technology
- electronic
- Installation
- recessed
- Material
- plastic
- Style
- contemporary
- Applications
- home, commercial
- Shape
- square, round
- Color
- gray
Description
Product description
Short description / Application
Compatible product examples
Main documents (title list)
Sustainability / Environment
Characteristics / technical specifications
- Product name: Nebenstelle Plus
- Configuration: 1-gang, System M
- Brand: Merten
- Material price group: E0
- Compatibility: PlusLink
Short description / Application
- Side / auxiliary controller for centralized single-zone control
- Electronic technology, flush-mount housing version
- Suitable for centralized control and push-type dimmer control applications
Compatible product examples
- PlusLink distributor (3-phase) — MEG5130-0001
- PlusLink extension — MEG5130-0000
- Cover frames and rockers (various System M variants) — compatible frame/rocker items (e.g. MEG5215-0319, MEG5215-0325, MEG5215-0414, MEG5215-0419, MEG5215-0460, MEG5210-0319, MEG5210-0325, MEG5210-0414, etc.)
- Main functions: relay switching insert (e.g. MTN5161-0000), shutter control insert (e.g. MTN5165-0000)
Main documents (title list)
- Product datasheet
- Declaration of Conformity (REACh statement)
- System user guide / Technical information (Wiser / PlusLink)
- Declaration of conformity (EU conformity declaration)
- Certificate
- Catalog
- Technical illustration (drawing)
- Instruction sheet (installation / mounting and wiring)
- User guide (operating instructions)
Sustainability / Environment
- Mercury-free: Yes (no part with more than 0.1% mercury on a homogeneous material level)
- SCIP number available
- Take-back: Yes
- WEEE note: Product must be disposed of separately; not to be disposed of with household waste
- EU RoHS and REACh declarations available
Characteristics / technical specifications
- Series: Merten
- Product name (on side): System M Inserts
- Compatible product family: PlusLink
- Product / component type: Dimmer
- Device application: Centralized control
- Technology: Electronic
- Enclosure version: Flush-mount
- Fixing mode: Screws and claws
- Number of rockers: 1
- Switch function: Centralized single zone control
- Dimmer control: Push type
- Rated operational voltage [Ue]: 220/230 V AC 50/60 Hz
- Operating temperature range: -5 … 35 °C
- Ingress protection (IP): IP20
- Height: 71 mm
- Width: 71 mm
- Aesthetic dimension: 55 x 55 mm
- Packaging unit (PU1): PCE, devices per pack: 1
- Packaging weight (single): 106,000 g
- PU2: CAR, quantity: 40, total weight PU2: 4,626 kg
- PU1 dimensions (HxWxL): 6.700 cm x 7.700 cm x 7.800 cm (as indicated in the datasheet)
- Contractual warranty: 18 months
