Power socket MEG2300-7260electricwall-mountedflush
Add to favorites
Compare this product
Characteristics
- Type
- power, electric
- Installation
- wall-mounted
- Mounting
- flush
- Material
- aluminium
- Style
- contemporary
- Applications
- commercial
- Shape
- square
- Finish
- matte
- Color
- gray
- Protection class
- IP20
- Other characteristics
- Schuko, with child protection
Description
Product overview

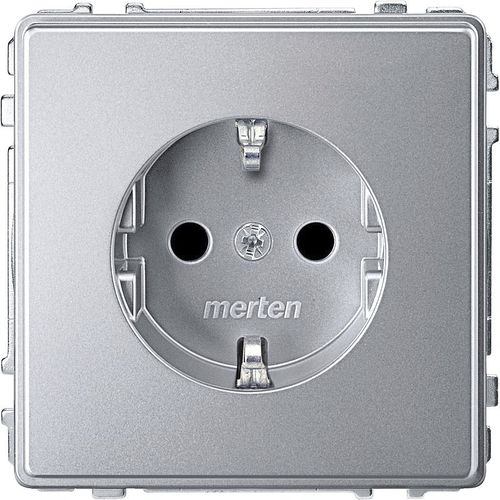

MEG2300-7260 – Schuko socket from the AQUADESIGN range in aluminium, with increased touch protection and screwless push-in terminals. Suitable for flush mounting as a mechanism with mounting frame and cover plate.
Main features
Application & installation note
Intended for flush mounting; fixation by screws and claws. Device representation: mechanism with mounting frame and cover plate. Protection rating IP20.
Packaging & warranty
Individual packaging (1 piece per package). Commercial warranty: 18 months.
Characteristics / technical specifications (summary)
MEG2300-7260 – Schuko socket from the AQUADESIGN range in aluminium, with increased touch protection and screwless push-in terminals. Suitable for flush mounting as a mechanism with mounting frame and cover plate.
Main features
- Increased touch protection
- Push-in terminals (screwless)
- Single socket (1x)
- Colour: aluminium
- Surface finish: painted
Application & installation note
Intended for flush mounting; fixation by screws and claws. Device representation: mechanism with mounting frame and cover plate. Protection rating IP20.
Packaging & warranty
Individual packaging (1 piece per package). Commercial warranty: 18 months.
Characteristics / technical specifications (summary)
- Series: Merten
- Product name: Aquadesign
- Product or component type: Socket (SCHUKO)
- Additional information: Locked
- Supply frequency: 50 Hz
- Output pole configuration: 2-pole + E
- Number of sockets: 1
- Mounting / device wiring: Flush mounting
- Fixing mode: By screws and claws
- Rated current: 16 A
- Rated operational voltage [Ue]: 250 V
- Connections - terminals: Screwless terminals
- Colour: Aluminium
- Surface treatment: Painted
- Degree of protection (IP): IP20
- Packaging weight (piece): 94 g
- Package quantity (e.g. carton): 50
