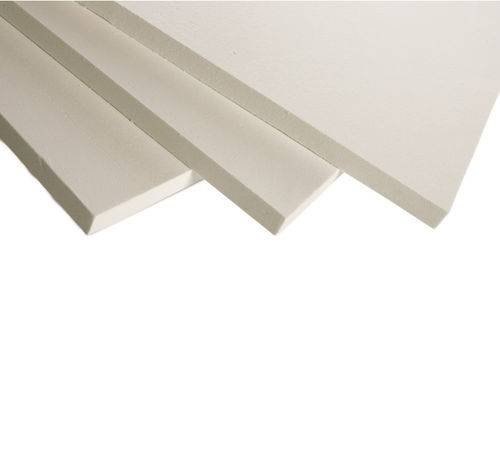

Rigid insulation panel Kaowool®

thermalmineralinterior

Kaowool Organic Boards are a family of rigid, self-supporting, high-temperature refractory ceramic fibre insulating boards. They are manufactured using state of the art Vacuum Forming technology and are designed for use in a wide range of applications requiring excellent stability and high-temperature capability. Kaowool Organic Boards have excellent thermal insulation properties, and unmatched resistance to thermal shock, abrasion, and chemical attack. Kaowool Organic Boards are manufactured in a range of thickness and dimensional choices. They have an excellent homogeneity throughout the thickness which ease machining of the boards when needed. The excellent rigidity and mechanical properties feature easy handling and quick installation in various engineering projects. All Board formulations contain a small amount of organic binder to improve the cold handling strength, and this burns out on first firing at approximately 200 - 300°C (392 - 572°F). The continuous use temperature depends upon the application and we encourage contacting your regional Morgan Advanced Materials - Thermal Ceramics representative to support specific application requirements. Features • Rigid, yet lightweight, hot face insulation • Resistant to particulate and hot gas erosion • Engineered formulations for high strength and temperature resistance • Low thermal conductivity and heat storage • Highly resistant to thermal shock Applications • Furnace and kiln hot face linings • Back-up insulation for monolithic and brick refractories • Ladle liners and covers • Aluminum trough liners and special shapes • Riser sleeves, tap out cones and hot tops • Combustion chambers for boilers and heaters
