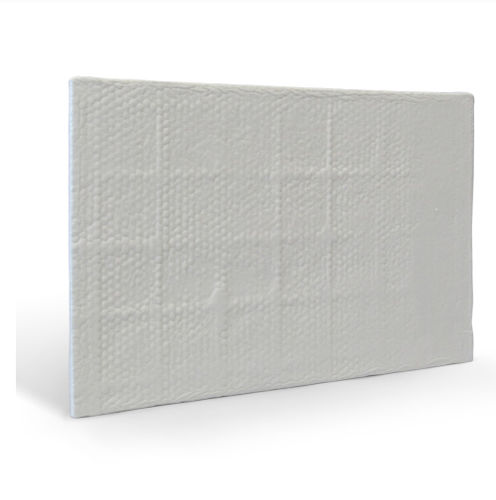

Thermal insulation Flexipor®

polyethylene (PE)mineralpanel

WDS Flexipor is a light weight microporous flexible insulation designed for applications where high compressive strength, flexibility associated to low thermal conductivity are the main selection criteria. WDS Flexipor is a sheet constituted of a microporous insulation compact core covered with a low bio persistence fiber paper on both sides which is then encapsulated in a PE foil to provide high flexibility of the finished product. Produced with our exclusive WDS Technology process, WDS Flexipor features extremely good handling properties, low thermal conductivity coefficient giving it very good insulating properties in limited thickness allowing to design equipment where high energy efficiency, space optimization and reduction of weight are premium factors to be considered. Features • Very high compressive resistance • Flexible • Not affected by thermal shock • Homogeneous and compact mineral structure • High stability over a wide range or temperature • Easy to cut and die cut • Available in a wide variety of format and thicknesses Benefits Dimensionally stable over time and up to the maximum using temperature • Helps to control energy efficiency and heat flow very precisely • Easy to cut and with proven installation techniques • Freedom in engineering at the design stage • Increases effective volume inner capacity or reduces encumbrance in equipment and apparels of any kind. • Very low weight lining system can be foreseen due to the extremely favorable product density/ thickness ratio Applications • Back up insulation of transfer and process ladles • Transfer metal equipment • Rotary kilns • Batteries • Electronic devices • Parts in the automotive industry
