Bathroom sink mixer tap SWAN

countertopchrome-plated brassbathroom

Product description

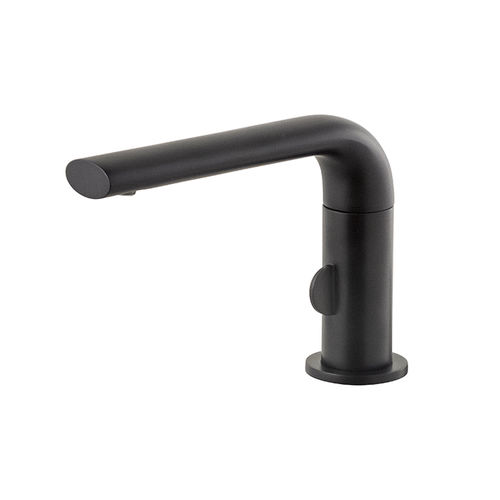

Single lever basin mixer SWAN for single-hole/on-top installation. 3/8" connection. Ceramic cartridge Ø25 mm. Connection hoses 450 mm. “Plus” aerator with flow limiter (standard 5 L/min at 3 bar). Supplied without pop-up waste.

Features

• Single lever basin mixer for on-top installation
• Connection: 3/8"
• Cartridge: Ø25 mm ceramic cartridge
• Hoses length: 450 mm
• “Plus” aerator with integrated flow limiter (included)
• Standard flow rate: 5 L/min at 3 bar
• Available finishes: Chrome, Matt black
• Certifications / eco features: Noken Eco_Start, Noken Eco-Flow, Waterforest, EU Water Label, DGQA Ecolabel

Aerators / Flow rates (flow rate at 3 bar)

• Limiter 100150413 (included) — 5 L/min
• Get together with 100173001 — 4.5 L/min
• Get together with 100339527 — 3.5 L/min
• Get together with 100352303 — 1.3 L/min

Spare parts and RRP (excl. VAT)
Pos. | SAP | Art. | RRP
0010 - 100266991 - REP. AER+KEY SQUARE HIGH SP BASIN MIXER - 33,00 EUR
0020 - 100087641 - LLAVE AIREADOR ENCASTRADO INTERM. JR - 4,00 EUR
0030 - 100352308 - O-RINGS,SCR, COV SWAN BAS MIX CHR - 7,00 EUR
0040 - 100352306 - HANDLE SWAN BAS MIXER CHROME - 12,00 EUR
0050 - 100352310 - BASE SWAN BAS MIXER CHROME - 6,00 EUR
0060 - 100349817 - 25 MM CARTRIDGE SWAN BAS MIXER - 50,00 EUR
0070 - 100347823 - HOSE FOR BASIN MIXER 450MM M10X1 STANDAR - 4,00 EUR

Technical specifications

• Commercial denomination: SWAN
• Article code: 100346748 (Chrome)
• Type: Single lever basin mixer (on-top / basin)
• Connection: 3/8"
• Cartridge diameter: Ø25 mm (ceramic)
• Hoses length: 450 mm
• Aerator: “Plus” aerator; flow limiter included (standard 5 L/min)
• Alternative aerator flow options: 4.5 L/min, 3.5 L/min, 1.3 L/min (with respective part numbers)
• Flow rate (standard): 5 L/min at 3 bar
• Pop-up waste: without pop-up waste
• Certifications / eco features: Noken Eco_Start, Noken Eco-Flow, Waterforest, EU Water Label, DGQA Ecolabel
