Shower mixer tap TOUCH & FEEL
wall-mountedthermostaticmetal

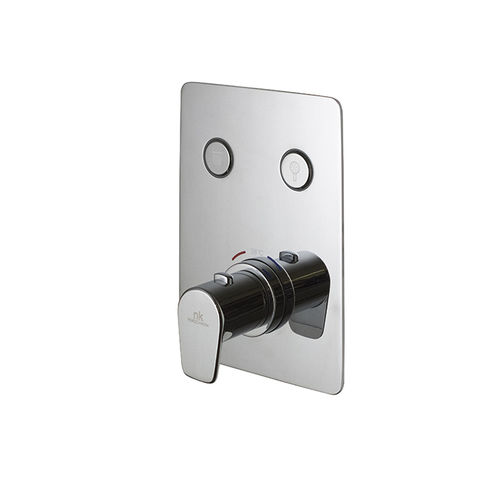

Shower mixer tap - TOUCH & FEEL - NOKEN – PORCELANOSA BATHROOMS - wall-mounted / thermostatic / metal
Shower mixer tap - TOUCH & FEEL - NOKEN – PORCELANOSA BATHROOMS - wall-mounted / thermostatic / metal
Add to favorites
Compare this product

Characteristics

Product applications
for shower
Installation
wall-mounted
Type
thermostatic
Material
metal
Location
bathroom
Number of holes
2-way
Style
contemporary
Spout type
with pull-out spray, waterfall
Handle shape
lever
Waste
without waste
Finish
silver-colored
Other characteristics
cold water, hot water
Height

200 mm
(7.87 in)

Description

Product description
The touch&feel thermostatic concealed bath/shower mixer is a 2-outlet control unit designed for professional installations. It includes a thermostatic cartridge, a trim kit and a Smart box body. Inlet connections are 3/4" and outlet connections are 1/2". Flow rate at 3 bar is approximately 20 L/min per outlet; simultaneous functions combination is possible. Pre-installed trims for hand shower and rain functions are provided, and an interchangeable cascade trim button is included. Compatible with references 100243874, 100243838, 100284604 and 100243839 to open an additional bottom outlet.

Key features
  • Thermostatic concealed bath/shower mixer
  • 2 outlets
  • Thermostatic cartridge included
  • Inlet connections: 3/4"
  • Outlet connections: 1/2"
  • Trim kit and Smart box body included
  • Flow rate at 3 bar: A = 20.3 L/min; B = 20 L/min
  • Simultaneous combination of functions possible
  • Pre-installed trims for hand shower and rain buttons
  • Interchangeable cascade trim button
  • Security stop at 38 ºC
  • Dummy version or display brackets available

Multimedia
  • Disinfecting thermostatic valves with hot water
  • How to calibrate the thermostatic cartridge?
  • touch&feel thermostatic concealed valve — product video showing control options and interchangeable symbols


Spare parts / Versions (excerpt)
Version A00 - Spare parts table
  • 0010 | 100244099 | REP. INT MEC T&F EXCEPT BAR/WATER SUPPLY | 32,00 EUR
  • 0020 | 100244079 | REP. RED. MEC PUSH TOUCH&FEEL | 9,00 EUR
  • 0030 | 100244138 | REP. TRIM PLATE TOUCH&FEEL 100243881 | 94,00 EUR
  • 0040 | 100244109 | REP. BUTTON TRIM SHOWER TOUCH&FEEL | 8,00 EUR
  • 0050 | 100244130 | REP. BUTTON TRIM HAND SH TOUCH&FEEL | 8,00 EUR


Caractéristiques / technical specifications
  • Type: Thermostatic concealed bath/shower mixer
  • Number of outlets: 2
  • Thermostatic cartridge included (see spare parts for references)
  • Inlet connections: 3/4"
  • Outlet connections: 1/2"
  • Flow rate at 3 bar: A = 20.3 L/min; B = 20 L/min
  • Trim kit and Smart box body included
  • Security stop at 38 ºC
  • Pre-installed trims for hand shower and rain buttons
  • Interchangeable cascade trim button
  • Possible to combine functions simultaneously and to open an additional bottom outlet with references 100243874, 100243838, 100284604, 100243839
  • Available downloads: technical sheet, installation, maintenance, warranty, 2D/3D files, spare parts lists, technical drawings
