Thermostatic mixer tap URBAN

showerwall-mountedmechanical

Product overview

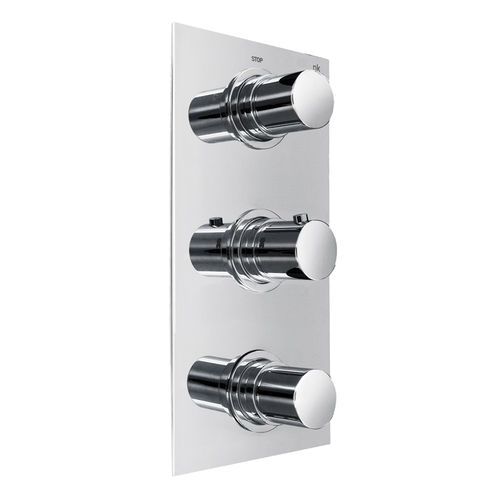

Concealed 4-way thermostatic valve URBAN with three handles and a wax thermo-element. Available with ½ or ¾ connectors according to the technical drawing. Includes a diverter with flow regulator, one high-flow outlet operated by a separate handle, integrated non-return valves and a 38°C safety stop. Chrome finish.

Flow rates (at 3 bar)

• Declared mixed-water flow rates: 24.6 L/min; 22.1 L/min; 21.8 L/min; 45.5 L/min.
• Icon values at 3 bar: Diverter 22.5 L/min; Shower mixer 15 L/min; Outlet elbow 15 L/min; Spout 45.5 L/min.

Features

• Concealed (built-in) installation
• Thermostatic control with wax thermo-element
• Three handles (separate handle for high-flow outlet)
• Four-way configuration including one high-flow way
• Diverter with flow regulation
• Non-return valves included
• 38°C safety stop
• Chrome finish

Certifications

• BELGAQUA

Available downloads / resources

• Technical sheet, Installation manual, Maintenance manual, Warranty document
• Technical drawing (PDF), 2D DWG, 3D models (FBX/MAX/OBJ), Exploded view and spare parts list (PDF)

Spare parts

• Spare parts and replacement components are available by version (>10-2017, <10-2017, >04-2021). Refer to the spare parts list in the documentation for item codes, compatibility and pricing.

Technical specifications

• Commercial name: URBAN
• Product code: 100140559
• Type: Concealed thermostatic valve, 4-way, 3-handle
• Thermo-element: Wax thermostatic element
• Connectors: ½ or ¾ (see technical drawing)
• Diverter: Included with flow regulator
• High-flow way: 1 high-flow outlet with separate handle
• Non-return valves: Included
• Safety stop: 38°C
• Example flow rates (at 3 bar): 24.6; 22.1; 21.8; 45.5 L/min (mixed water)
• Finish: Chrome
• Available documentation: technical sheet, installation manual, maintenance guide, warranty, technical drawing, 2D DWG, 3D models, exploded view and spare parts list
