Shower mixer tap TOUCH & FEEL
wall-mountedthermostaticmetal

Shower mixer tap - TOUCH & FEEL - NOKEN – PORCELANOSA BATHROOMS - wall-mounted / thermostatic / metal
Shower mixer tap - TOUCH & FEEL - NOKEN – PORCELANOSA BATHROOMS - wall-mounted / thermostatic / metal
Add to favorites
Compare this product

Characteristics

Product applications
for shower
Installation
wall-mounted
Type
thermostatic
Material
metal
Location
bathroom
Number of holes
2-way
Style
contemporary
Spout type
with pull-out spray, waterfall
Handle shape
lever
Waste
without waste
Finish
silver-colored
Other characteristics
cold water, hot water, water-saving
Height

200 mm
(7.87 in)

Description

Product description

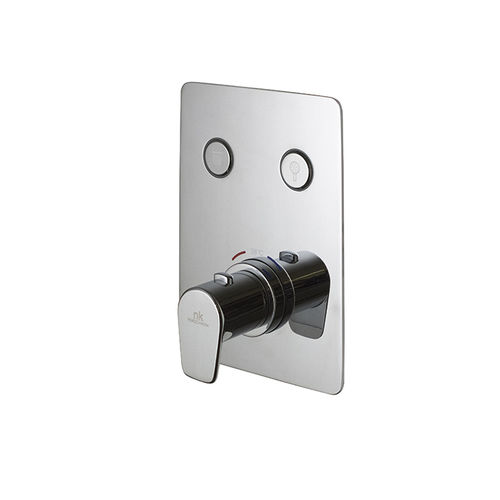

Thermostatic concealed bath/shower mixer with two outlets from the touch&feel range. Supplied with a replaceable thermostatic cartridge, trim kit and Smart box body. Inlet connections 3/4"; outlet connections 1/2". Flow rate at 3 bar: approx. 20 L/min per outlet. Functions (hand shower, rain, cascade) can be combined simultaneously. Trims for hand shower and rain are preinstalled; cascade trim is interchangeable. Compatible with 100243874, 100243838, 100284604 and 100243839 to enable an additional bottom outlet.

Features
  • Concealed thermostatic valve for bath and shower with two outlets
  • Replaceable thermostatic cartridge
  • Inlet connections: 3/4"
  • Outlet connections: 1/2"
  • Trim kit and Smart box body included
  • Flow rate at 3 bar: approx. 20 L/min per outlet (A = 20.3 L/min; B = 20 L/min)
  • Simultaneous operation of outputs possible
  • Preinstalled trims for hand shower and rain; interchangeable cascade trim
  • Safety stop / temperature limiter at 38 ºC
  • 2-way configuration (two outlets); dummy/display brackets available


Multimedia / Videos (titles)
  • Disinfecting thermostatic valves with hot water
  • How to calibrate the thermostatic cartridge?
  • Touch & Feel thermostatic concealed valve


Spare parts - Version A00 (RRP excl. VAT)
  • 0010 | 100244099 | REP. INT MEC T&F EXCEPT BAR/WATER SUPPLY | 32,00 EUR
  • 0020 | 100244079 | REP. RED. MEC PUSH TOUCH&FEEL | 9,00 EUR
  • 0030 | 100244138 | REP. TRIM PLATE TOUCH&FEEL 100243881 | 94,00 EUR
  • 0040 | 100244109 | REP. BUTTON TRIM SHOWER TOUCH&FEEL | 8,00 EUR
  • 0050 | 100244130 | REP. BUTTON TRIM HAND SH TOUCH&FEEL | 8,00 EUR
  • 0060 | 100244131 | REP. BUTTON TRIM CASCADE TOUCH&FEEL | 8,00 EUR
  • 0070 | 100244140 | REP. BUTTON TRIM MIST TOUCH&FEEL | 8,00 EUR
  • 0080 | 100244141 | REP. BUTTON TRIM LATERAL JET TOUCH&FEEL | 8,00 EUR
  • 0090 | 100244125 | REP. BUTTON TRIM CENTRAL JET TOUCH&FEEL | 8,00 EUR
  • 0100 | 100253851 | REP BOT EMB CAN BAN TOUCH&FEEL | 8,00 EUR
  • 0110 | 100244139 | CARTR T&F100243819,243873,243848 | 67,00 EUR
  • 0120 | 100244127 | FIL+VALV SB T&F 100243819,100243873 | 9,00 EUR
  • 0130 | 100244148 | TRIM CART SB T&F 100243819,100243873 | 28,00 EUR
  • 0140 | 100244170 | REP. HANDLE T&F100243819,243873,243848 | 23,00 EUR


Spare parts - Version A01 (RRP excl. VAT)
  • 0010 | 100244099 | REP. INT MEC T&F EXCEPT BAR/WATER SUPPLY | 32,00 EUR
  • 0020 | 100244079 | REP. RED. MEC PUSH TOUCH&FEEL | 9,00 EUR
  • 0030 | 100244138 | REP. TRIM PLATE TOUCH&FEEL 100243881 | 94,00 EUR
  • 0040 | 100244109 | REP. BUTTON TRIM SHOWER TOUCH&FEEL | 8,00 EUR
  • 0050 | 100244130 | REP. BUTTON TRIM HAND SH TOUCH&FEEL | 8,00 EUR
  • 0060 | 100244131 | REP. BUTTON TRIM CASCADE TOUCH&FEEL | 8,00 EUR
  • 0070 | 100244140 | REP. BUTTON TRIM MIST TOUCH&FEEL | 8,00 EUR
  • 0080 | 100244141 | REP. BUTTON TRIM LATERAL JET TOUCH&FEEL | 8,00 EUR
  • 0090 | 100244125 | REP. BUTTON TRIM CENTRAL JET TOUCH&FEEL | 8,00 EUR
  • 0100 | 100253851 | REP BOT EMB CAN BAN TOUCH&FEEL | 8,00 EUR
  • 0110 | 100244139 | CARTR T&F100243819,243873,243848 | 67,00 EUR
  • 0120 | 100278745 | FIL+VALV ANT T&F C/ FUNCION STOP TERM SB | 11,00 EUR
  • 0130 | 100244148 | TRIM CART SB T&F 100243819,100243873 | 28,00 EUR
  • 0140 | 100244170 | REP. HANDLE T&F100243819,243873,243848 | 23,00 EUR


Technical specifications
  • Type: Thermostatic concealed bath/shower mixer (recessed)
  • Number of outlets: 2 (simultaneous operation possible)
  • Cartridge: Replaceable thermostatic cartridge
  • Inlet connections: 3/4"
  • Outlet connections: 1/2"
  • Included: Trim kit and Smart box body
  • Flow rate (at 3 bar): approx. 20 L/min per outlet (A = 20.3 L/min; B = 20 L/min)
  • Safety: Temperature limiter / safety stop at 38 ºC
  • Accessories: Trims for hand shower and rain; interchangeable cascade trim; dummy/display brackets available
  • Compatible with: 100243874, 100243838, 100284604, 100243839 (for additional bottom outlet)
