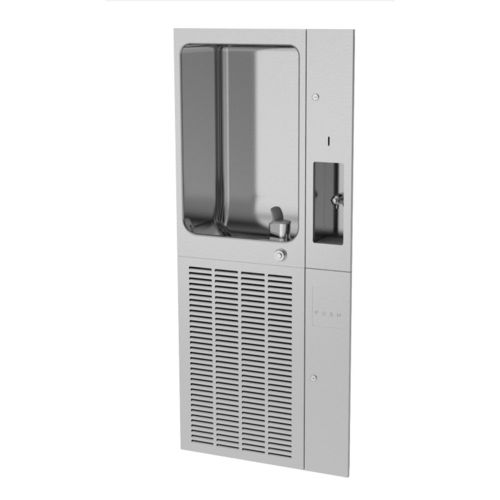

Recessed drinking fountain PLF8FPMCDY

indoorstainless steelfor public space

PLF8FPMCDY is a manually activated Fully Recessed Drinking Fountain. With the added features of a matching cup filler, cup dispenser and disposer. PLF8FPMCDY delivers 60LPH of of 10°C water at 21°C ambient. It is Manually Activated via the push button on the front of the cabinet. Cabinet finish is brushed stainless steel. Shall use R-134a refrigerant. These surface mount drinking fountains are manually activated via the vandal-resistant touch-button. These drinking fountains are fully recessed and have an integrated cup dispenser, proving to be a great space-saver. Suitable for public building, gymnasiums, sports complexes, hospitals, schools and offices. Technical Spec Activation Mechanical (Constant Flow Bubbler) Dimensions 1410(H) x 610(W) x 13(D) mm (274 recessed) Max. Power Consumption 340W Performance 60 LPH Rated Capacity & Base Rate (10°C in 21°C amb. temp.) Power Supply 220-240V, 50/60 Hz Water Type Cold Micron Rating Built-in 100 micron strainer Standard Features: Fully Recessed Refrigerated Drinking Fountain PLF8FPMCDY delivers 60 litres of chilled drinking water an hour Mechanical Push button activation Cup dispenser – Water receptacle ADA compliant for both adult or child when properly installed Waterways are lead-free in materials and construction Stainless steel panels and backsplash Welded, heavy-gauge steel frame Stainless steel basin and grille High efficiency cooling tank and coil Energy-Efficient refrigeration system powers ‘ON’ only when in use or if water temp increases during long period of standby Refrigerant R-134a Standard finish: brushed stainless steel Requires no floor space Easy installation ANSI/NSF 61 Limited five-year warranty
