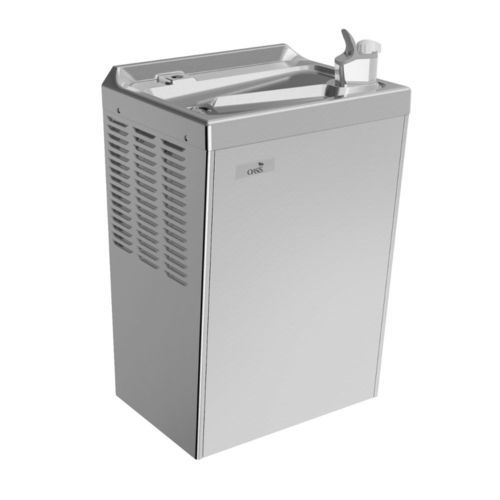

Handicapped drinking fountain PLF14MHY

coldwall-mountedfor public washroom

PLF14MHY is a manually activated On-A-Wall Drinking Fountain. PLF14MHY delivers 106 LPH of 10°C water at 21°C ambient. With the additional option of hot water, too. Cabinet finish is brushed stainless steel. Shall use R-134a refrigerant. Suitable for institutions, hospitals, schools, public lobbies and offices. - On-a-wall Refrigerated Drinking Fountain - PLF14MHY delivers 106 litres of chilled drinking water an hour - Delivers hot water - Mechanical Dial-A-Drink® Bubbler - ADA compliant for both adult or child when properly installed - Waterways are lead-free in materials and construction - Stainless steel top - Welded, heavy-gauge steel frame - High efficiency cooling tank and coil - Energy-Efficient refrigeration system powers ‘ON’ only when in use or if water temp increases during long period of standby - Refrigerant R-134a - Standard finish: brushed stainless steel - ANSI/NSF 61 - Limited five-year warranty Options: - Carafe fillers (factory installed): 030239-003 - Installation Kit Technical Specifications: - Dimensions: 660(H) x 432(W) x 456(D) mm - Finish: Brushed Stainless Steel - Max. Power Consumption: 820W - Performance: 106 LPH Rated Capacity & 60 LPH Base Rate (10°C in 21°C ambient temp.) - Power Supply: 220-240V, 50/60 Hz - Water Type: Cold & Hot - Micron Rating: Built-in 100 micron strainer Product Assurance And Certifications: Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD, EMC, RoHS). Shall comply with ANSI/NSF 61.
