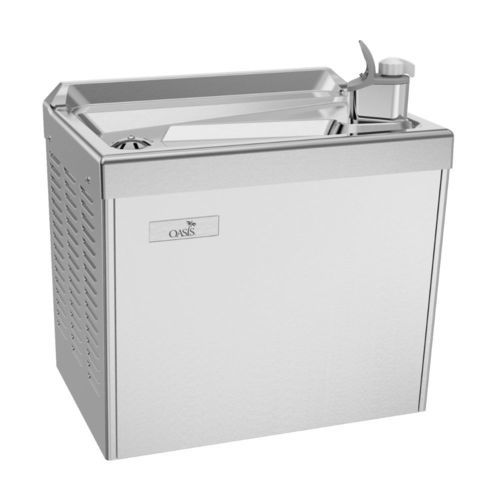

Handicapped drinking fountain PLF4CMY

coldwall-mountedresidential

The PLF4CMY is a manually activated on-a-wall drinking fountain designed to deliver 30 liters per hour of chilled water at 10°C in a 21°C ambient environment. It features a brushed stainless steel cabinet and uses R-134a refrigerant. This fountain is suitable for institutions, hospitals, schools, public lobbies, and offices. Technical Specifications: - Dimensions: 406(H) x 432(W) x 335(D) mm - Finish: Brushed Stainless Steel - Max. Power Consumption: 400W - Performance: 30 LPH Rated Capacity & Base Rate (10°C in 21°C ambient temp.) - Power Supply: 220-240V, 50/60 Hz - Water Type: Cold - Micron Rating: Built-in 100 micron strainer Standard Features: - On-a-wall Refrigerated Drinking Fountain - Mechanical Dial-A-Drink® Bubbler - ADA compliant for both adult or child when properly installed - Waterways are lead-free in materials and construction - Stainless steel top - Welded, heavy-gauge steel frame - High efficiency cooling tank and coil - Energy-Efficient refrigeration system powers ‘ON’ only when in use or if water temp increases during long period of standby - Refrigerant R-134a - Standard finish: brushed stainless steel - ANSI/NSF 61 - Limited five-year warranty Options: - Installation Kit Product Assurance And Certifications: Complies with ANSI A117.1 and ADA. Shall comply with all relevant CE directives (LVD, EMC, RoHS). Shall comply with ANSI/NSF 61.
