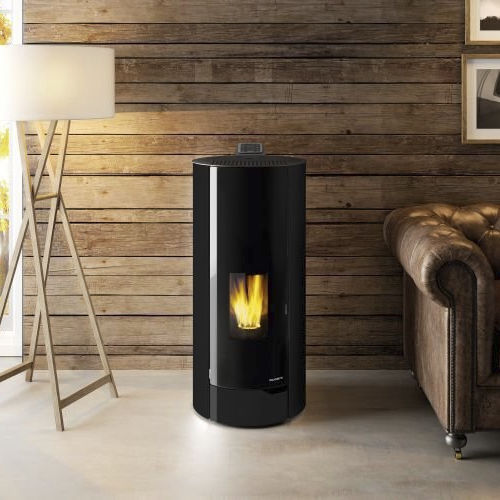

Pellet heating stove NINA

5 kW...10 kWfloor-mountedcontemporary

To find out more about the technology behind Ecofire air-heating pellet stoves please go to the Heating Systems section. More in-depth info • steel structure with metal cladding • two doors, one design door and one for maintenance • ceramic glass (800°) featuring our air wash system • Balanced Door with self-balancing system • top hot air outlet • variable-speed fan with Zero Speed Fan technology (the fan can be switched off to increase acoustic comfort and favour natural heat diffusion) • digital, touch screen control panel • operating hours can be programmed on a daily and weekly basis • designed for our Connection Box • high-efficiency flue gas heat exchanger • burn pot in cast iron • large ash drawer and Speedy Clean system • Quick Start system (reduces ignition time) • Star Valve pellet-feed system • combustion air ducted from outdoors Technical details Pellet burning Nominal heat output 8.2 kW Efficiency 87.7 % Maximum burn time 29 h Fuel hopper capacity 18 kg Hourly fuel consumption 0.628 - 1.917 kg/h Flue gas outlet ø 8 cm
