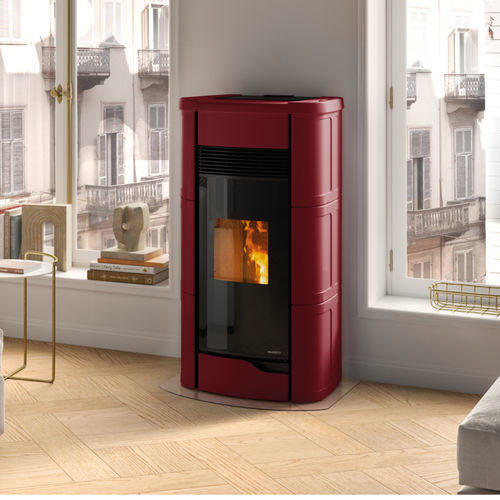

Pellet heating stove ANNA 9

9 kW12 kWfloor-mounted

To find out more about the technology behind Ecofire air-heating pellet stoves please go to the Heating Systems section. More in-depth info • sealed stove, can draw its combustion air directly from outdoors • steel structure with ceramic cladding • double-glazed door • ceramic glass (800°) featuring our air wash system • Balanced Door with self-balancing system • front hot air outlet • variable-speed fan with Zero Speed Fan technology (the fan can be switched off to increase acoustic comfort and favour natural heat diffusion) • digital, touch screen control panel • operating hours can be programmed on a daily and weekly basis • designed for our Connection Box • high-efficiency flue gas heat exchanger • burn pot in cast iron • large ash drawer and Speedy Clean system • Quick Start system (reduces ignition time) • Star Valve pellet-feed system • Pro 2: two independent fans; one for the room and one for the rear ducting (Ø 8 cm) Technical details Nominal heat output 9 kW Efficiency 90.5 % Maximum burn time 27 h Fuel hopper capacity 22 kg Hourly fuel consumption 0.83 - 2.05 kg/h Flue gas outlet ø 8 cm
