High-resistance gypsum plasterboard SOFFIT

reinforcedrectangularfire-retardant

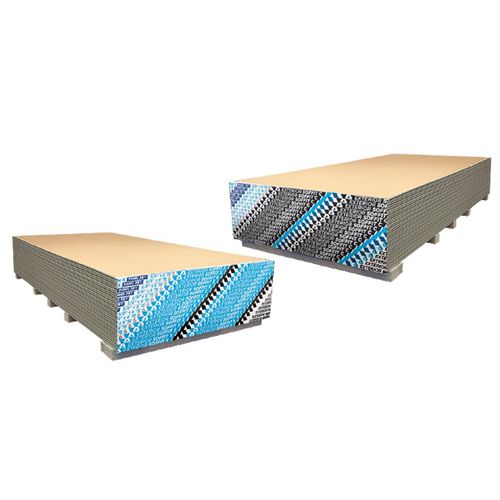

Panel Rey’s Exterior Soffit X/Exterior Soffit C is a product with a fireproof core essentially made of gypsum and reinforced with the addition of high temperature resistant fibers and special additives to provide a higher resistance and performance. The drywall is covered on both sides with 100% recycled paper. The paper, on the front, covers the beveled edges to strengthen and protect the core. The ends are square cut and finished smooth. Panel Rey Exterior Soffit X/Exterior Soffit C board is offered in a wide variety of standard lengths and thickness of 5/8”. Panel Rey products do not contain asbestos. Is used to cover protected exterior ceilings in residential and commercial construction projects. The core stays fire-resistant. Is designed to be fixed with screws, nails or adhesives directly on wood, metal or already existing surfaces. 5/8” Thick – Recommended for the applications of 1 to 2 coats for protected exterior ceiling. Thickness Exterior Soffit X 5/8” (15.9 mm) Exterior Soffit C 5/8” (15.9 mm) Basic Applications Panel Rey’s Exterior Soffit X/Exterior Soffit C is used to cover protected exterior ceilings in residential and commer-cial construction projects, normally requiring of a specific assembly for fire resistance. Due to its natural properties, it disperses fire and heat transfer (natural gypsum contains approximately 21% water, which states to evaporate when heated, delaying heat transfer).
