Stainless steel profile

glasscoatededge

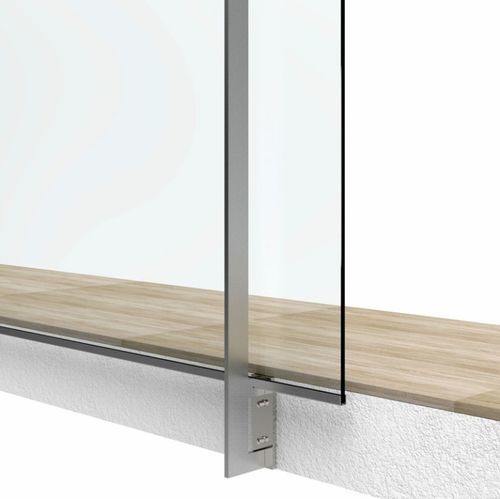

The balustrade system is a generation in the sense of Bauhaus style. The factual elegance adds to the architecture in an unobtrusive way. This balustrade system is a static problem solver in both indoor and outdoor use. Also suitable for public buildings. safety with abP and beam loads up to 1.0 kN •galvanized and powder-coated flat steel •filigree appearance (cross section 12 x 60 mm) •large post spacing allows glass widths up to 3800 mm •finite assembly without further bracing in the corners possible •favorable glass thickness (12,76 mm) • edge protection against moisture and impact with continuous U-profile made of stainless steel •two-sided linear glazing according to DIN 18008 •quick glass installation due to upper clamping fixation of the panel •secure glass mounting due to fixed slot at the base of the post •narrow glass butts of 10 mm provide higher wind reduction •suitable for floor and front mounting abP = german national technical certificatio
