Aluminum railing P-03

stainless steelglassglass panel

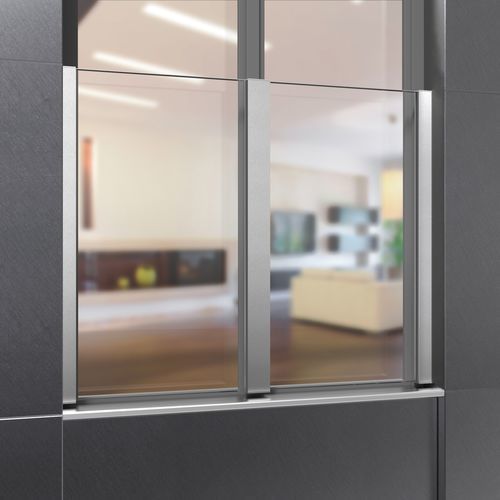

• all systems have a concealed mounting assembly • TYPE P-01 and P-03 suitable for frame and wall mounting • TYPE P-02 for the window jamb • suitable for all common window systems • TYPE P-03 is a middle connector profile set to expand P-01 and P-02 Crash-Proof-Glazing according to DIN 18008-4 with a National Technical Certifi cate (AbP) • AbP No. BAY 40-003-17-2 - valid for window profiles made of plastic, aluminum or wood and also for composite windows • max. glass width according to AbP: 3000 mm • available for glass thicknesses in LSG 10.76 to 21.52 mm • flexible glass heights possible, regulated from 300 mm according to the AbP • surface of the lateral clamping profiles are anodised or powder coated according to RAL • fastening screws are generally concealed, regardless of the type of profile or from the window material (concealed screw connection) • tested self-tapping screws for efficient and time-saving assembly • fastening screws used in window profiles needing large diameters and create thermal bridges and require elaborate stepped holes, are now part of the past • all Types for window-jamb mounting can also be used as a railing element on steel structures • subtle and AbP-tested flat profile as edge protection usable glass width (B) when combining a middle profile with a side profile P-01: = axial dimension (A) minus 38 mm when combining a middle profile with a side profile P-02: Middle profile to outer edge of side profile minus 57 mm when combining several middle connector profiles: = axial dimension (A) minus 44 mm glass height (H) = profile length (P) minus 7 mm axial dimension (A) = center screw to center screw profile length (P) = glass height plus 7 mm
