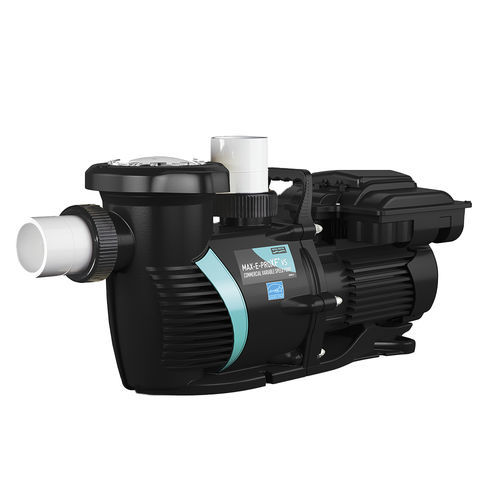

Variable-speed swimming pool pump MAX-E-PRO XF VS

The universal variable speed pump fo any semi-commercial pump. The Max-E-Pro XF VS Commercial Pump is the first five-horsepower variable-speed pool pump that runs on single-phase or three-phase power. It is an economical, combined motor/drive solution for both HMAC (hotel, motel, apartment, condominium) or large residential installations. The MAX-E-PRO XF VS Commercial Pump provides sophisticated, energy-saving pump technology without the high costs typically associated with independent pump/external drive setups. TECHNICAL FEATURES • Mechanical Seal - Stainless steel and EPDM materials provide extended life and longer intervals between servicing • Extra large strainer basket with see through lid • Cam and Ramp Lid and Locking Ring allow for quick and easy access to the basket • Inlet/Outlet: 75 mm unions • Thermal overload protection provided by the integral motor control • 4 digital inputs and RS-485 Modbus communication via Automation Wiring Kit (optional P/N 356324Z) • TEFC motors made with 300 series stainless steel shaft and lubricated, double sealed bearings → extends the life of the pump • MAX-E-PROXF VS variable speed pumps emit up to 42 dB (A)** less than a standard single speed fi ltration pump. **Compared to a standard single speed (5HP) fi ltration pump producing at least 82 dB (A). Values expressed in weighted sound power level according to ISO 3741 FEATURES & BENEFITS Integrated 5HP motor/drive with pre-set speed programs and versatile power input capability Plug and play variable speed pump easy to set up
