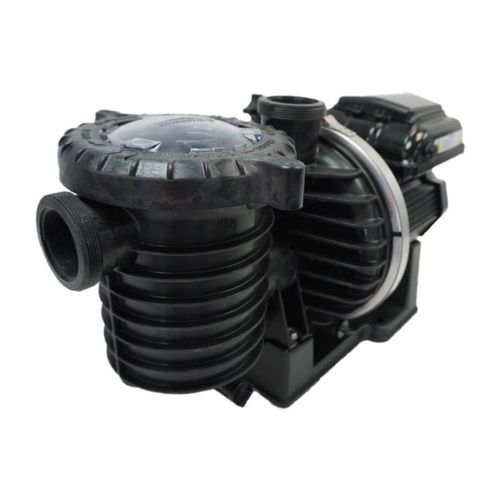

Variable-speed swimming pool pump SW5P6R-VS2M

Overview
With its permanent magnet motor and VS2 driver, the SW5P6R-VS2M pump enables energy savings with near-silent operation, delivering optimal filtration performance and simple, intuitive control.

Key features

• Permanent magnet motor
• VS2 driver
• Bi-material shaft with Stainless Steel AISI 304 drive-end
• Salt resistance 4.5% (45 g/L) — sea water compatible
• Simple, intuitive LCD display showing Watts, RPM & time
• 3 programmable speed/time settings plus manual override
• 4 digital inputs for external control (optional communication cable PN R356324Z)
• Stainless steel locking clamp
• ¼-turn opening lid
• XXL strainer basket

Benefits

• Simple, worry-free operation tailored to professional pool installations
• Quick maintenance and extended intervals between cleanings
• Reliable, energy-efficient pump suitable for seawater pools and marine environments

Documentation (available)

• Manual Variable speed pumps third generation (PDF)
• Brochure Variable speed pumps (PDF)
• VS2 cable color code (PDF)
• Brochure Smart and Sustainable Pools (PDF)

Videos (selected)

• Discover Pentair variable speed pumps (video)

Technical specifications

• Model: SW5P6R-VS2M
• Product type: High-efficiency variable-speed pool pump
• Motor type: Permanent magnet motor
• Driver: VS2
• Salt resistance: 4.5% (45 g/L) — sea water compatible
• Display: LCD with Watts, RPM & time info
• Programmable speeds: 3 speeds/time + override
• Digital inputs: 4 digital inputs for external control
• Optional communication cable: PN R356324Z
• Shaft: Bi-material shaft with Stainless Steel AISI 304 drive-end
• Maintenance features: Stainless steel locking clamp, ¼-turn lid, XXL strainer basket
• Product flags: Tradegrade, PIP Product (Partners Incentive Program eligible)
• Status: New
