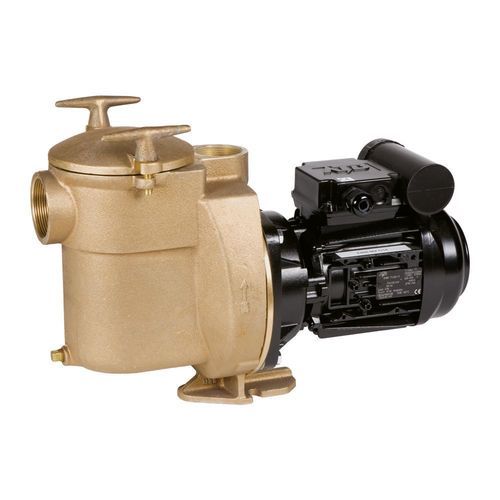

Swimming pool pump 5BR

Overview
Engineered in bronze for corrosion resistance, the 5BR pool filtration pump provides consistent flow and reliable operation in demanding residential environments. The bronze housing, drip‑proof carbon‑ceramic mechanical seal and IPX5‑rated motor protect performance in elevated temperatures and chemically aggressive atmospheres.

Key features

• Bronze housing for enhanced corrosion resistance.
• Drip‑proof carbon‑ceramic mechanical seal for extended service life.
• IPX5‑rated motor for protection against water ingress in harsh ambient conditions.
• Stainless steel one‑piece shaft and permanently lubricated bearings for robust operation.
• Self‑priming diffuser with bronze wear ring for rapid repriming and sustained free rotation under loss-of-prime conditions.

Performance highlights

• Capable of delivering heads up to 26 meters with sustained high flow rates.
• Specified for residential applications requiring continuous flow and corrosion resistance.

Technical specification

• Material: Bronze housing (corrosion‑resistant)
• Shaft: Stainless steel one‑piece
• Mechanical seal: Precision‑lapped, polished carbon‑ceramic with stainless steel components
• Motors: High efficiency IE2 single‑phase; IE3 for higher power three‑phase variants (≥0.75 kW)
• Ingress protection: IPX5
• Salt resistance: 0.40% (4 g/L)
• Piping connections: Inlet 2" BSPP, Outlet 1.5" BSPP
• Maximum head: up to 26 meters

Features & Benefits

• Self‑priming diffuser design — optimum pump efficiency and rapid repriming.
• Bronze housing and carbon‑ceramic seal — reliable corrosion resistance in chemically rich conditions.
• Robust motor with stainless steel shaft and permanently lubricated bearings — supports high flow and high head operation.
