frame formwork / modular / metal / wall



  • Type:

    frame, modular

  • Material:


  • Applications:

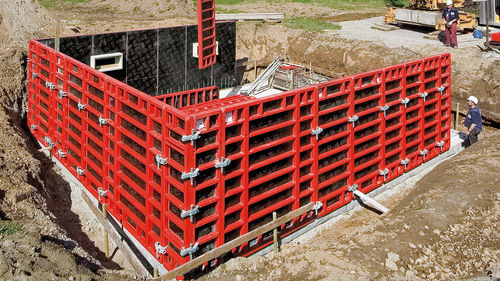

The focus of the universal TRIO Wall Formwork is on ensuring simple shuttering procedures and reduced shuttering times. Standard panels have only 6 different widths which allows easy handling and efficient logistics. With the BFD Coupler for all connections as well as many other practical system solutions, TRIO has successfully proven itself in countless projects around the world.

TRIO is very versatile and efficient in its use - from residential construction and multi-storey structures through to applications in infrastructure projects. This ensures a high degree of utilisation and thus the cost-effectiveness of the system. Variants of the panel formwork, e.g. the aluminum version or for special surfaces, expands the range of applications. The closed panel profiles of the TRIO provide high torsional stability. The excellent product quality guarantees a long service life. For all applications, TRIO fulfils the highest requirements regarding the evenness.

Fast working operations
with only a minimum of panel widths as well as panels that can be used both horizontally and vertically

Easy and simple connections
with the BFD Alignment Coupler as the only component for all panel connections

Large-area shuttering
with standard panels up to 3.30 m x 2.40 m - providing a high level of surface evenness and only 2 tie positions

Flexibly used panel formwork for fast working operations, compatible with MAXIMO panel formwork
Panel heights up to 3.30 m, panel widths up to 2.40 m (standard system)
Maximum permissible fresh concrete pressure: 80 kN/m²
Can be used with DW 15 and DW 20 tie systems
