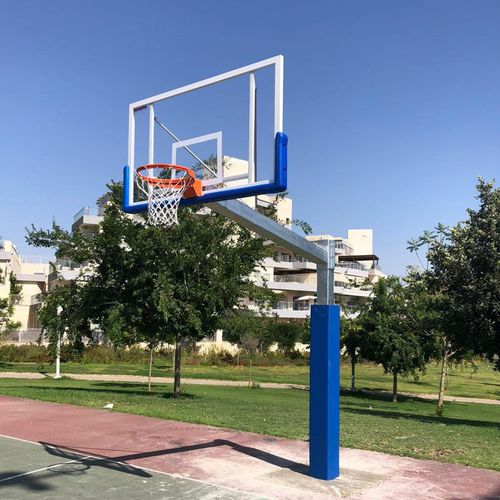

Single-post basketball structure Heavy Duty, intended for outdoor use, profile 150x150x4 mm, projection 1.2 m - 2.25 m, for backboard 105x180 cm or 90x120 cm, hot dip galvanized, installed in a sleeve
Single-post basketball structure with backboard 105x180 cm or 90x120 cm, intended for outdoor use on open space (playgrounds, school courts), projection 1.2 - 2.25 m, mounted in a sleeve.
The main post, made of profile 150x150x4 mm, is embedded and locked in the sleeve by a special lever mechanism, hidden inside the post.
Projection arm, made of 150x150x4 mm profile, is attached to the post on a clamp, made of specially bent 8 mm thick sheets, six M12x45 screws, and with 12 mm thick plate for mounting the backboard.
Universal adjustable struts are suitable for various types of backboards (epoxy and steel lattice, and also acrylic or tempered glass).
The whole structure is protected against corrosion by hot dip galvanizing.
The projection arms fixing technology also allows to mount up to four projection arms on one post (for projections up to 1.65 m) on each side of the main post, with the option of setting them at different heights.
Single-post basketball structure, profile 150x150x4 mm, projection 1.2 m, for backboards 90x120 or 105x180 cm, hot dip galvanized, mounted in a sleeve
Single-post basketball structure, profile 150x150x4 mm, projection 1.4 m, for backboards 90x120 or 105x180 cm, hot dip galvanized, mounted in a sleeve
Single-post basketball structure, profile 150x150x4 mm, projection 1.65 m, for backboards 90x120 or 105x180 cm, hot dip galvanized, mounted in a sleeve
