Mobile tribune seating 14-62V-MOB

galvanised steelplasticstraight

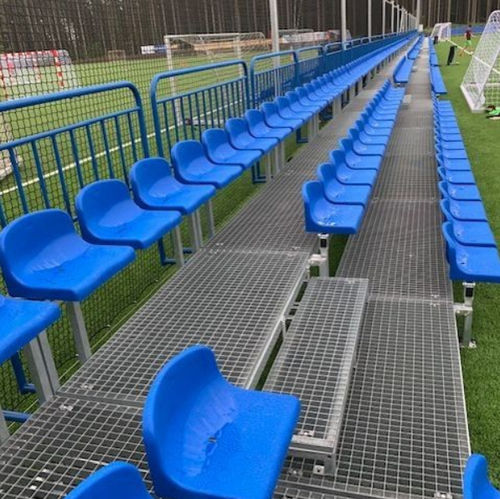

3-row modular mobile tribune for outdoor use with plastic seats, lattice platforms Vema type ans steel structure - hot dip galvanized, protective barriers powder coated or galvanized. The modules are equipped with a set of wheels fi 175 mm for transport. Lengths of available modules: 2 m (module with seats) and 1,5 m (module with entrance) The structure of the tribune modules, made of steel profiles, is protected against corrosion by hot-dip galvanizing Platforms made of 30 mm high steel lattice (Wema type) with 33x44 mm mesh Protective barriers protected by powder coating or galvanizing Each tribune module is equipped with a set of wheels for easy transport The tribune design is prepared individually for each facility, in accordance with the current safety regulations and audience standards Axial spacing of seats 500 mm Type of seats Plastic seat without backrest H=11 cm Plastic seat with medium-high backrest H=25 cm Plastic seat with high backrest H=32 cm Level difference between platforms 280 mm Height of the middle steps of the entrance module 140 mm Structure elements finishing Hot-dip galvanizing Barriers finishing Powder coating Material of the platform Steel lattice (Wema type) 30 mm high, with 33x44 mm mesh Transport wheels - A set of 4 pneumatic transport wheels with a diameter of 175 mm for each module The number of rows 3 The depth of the tribune [cm] 225 The height of the tribune [cm] 166 The height of the last platform [cm] 56 Number of seats on 2 m module* 12 Number of seats on 1,5 m module with entrance* 3
