Single-post basketball structure Strong, profile 100x100x4 mm, projection 1.2 m – 1.65 m, for backboard 105x180 cm or 90x120 cm, hot dip galvanized, with the base screwed to the installation plate (with fixing elements) embedded in concrete, intended for outdoor use
Single-post basketball structure with backboard 105x180 cm or 90x120 cm, projection 1.2 – 1.65 m, with the base screwed to the installation plate (with fixing elements) embedded in concrete, intended for outdoor use on open space (playgrounds, school courts).
The main post, made of profile 100x100x4 mm, is screwed to the installation plate (with fixing elements) embedded in the concrete foundation. Thanks to the use of a special technology, after dismantling the post, there are no protruding dangerous elements in the ground.
Projection arm, made of 90x90x3 mm profile, is attached to the post on a clamp, made of specially bent 8 mm thick sheets, six M12x45 screws, and with 12 mm thick plate for mounting the backboard. Special holes for M10x45 countersunk screws in the projection arm fixing plate enable easy and trouble-free backboard assembly.
Universal adjustable struts are suitable for various types of backboards (epoxy and steel lattice, and also acrylic or tempered glass).
The whole structure is protected against corrosion by hot dip galvanizing.

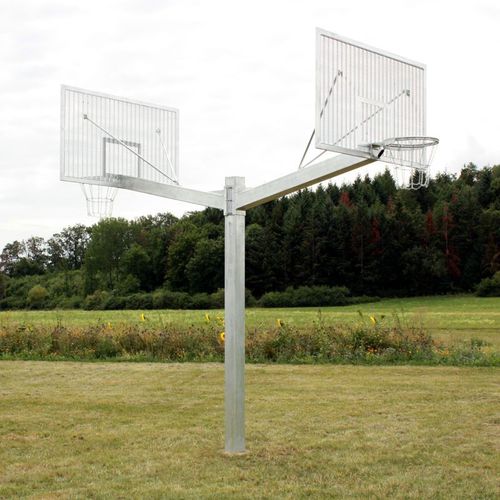

The projection arms fixing technology also allows to install two projection arms on one post (on opposite sides of the main post), with the option of setting them at different heights.
Single-post basketball structure, profile 100x100x4 mm, projection 1.2 m, for backboards 90x120 or 105x180 cm, hot dip galvanized, mounted on a plate
