Thermal-acoustic insulation PH40
polyurethane foamstone woolcoconut fiber

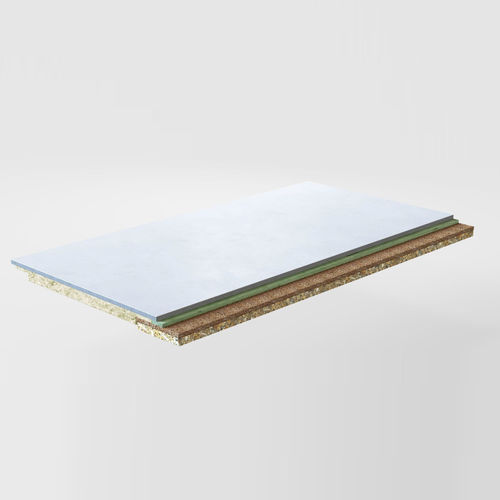

Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber
Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber
Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber - image - 2
Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber - image - 3
Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber - image - 4
Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber - image - 5
Thermal-acoustic insulation - PH40 - Phonotech sprl - polyurethane foam / stone wool / coconut fiber - image - 6
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
thermal-acoustic
Material
polyurethane foam, stone wool, coconut fiber
Format
rigid panel
Use
wall, for ceiling, for partition wall
Technical characteristics
high-performance
Options
lightweight, with plasterboard
Thermal resistance

1.18 m²K/W

Thickness

52.5 mm
(2.07 in)

Description

The Phonotech® PH-40 acoustic system offers a very performing sound insulation for walls and ceilings. Thanks to their spring batten, the Phonotech panels provide a mass-spring-mass effect. Due to its RD40 start and end battens, the Phonotech PH40 system forms an intuitive complete wall and ceiling assembly. This decoupling will block any transfer of vibrations through its shock absorbing effect and will provide optimum sound reduction. INSTALLATION Due to their light weight, Phonotech elements can by installed by one person alone. The intuitive Phonotech attachment system guarantees easy and fast assembly. APPLICATION The Phonotech® PH-40 acoustic system can be laid both on vertical wall and flat or sloped ceiling. FINISHES Once the Phonotech PH40 panels’ installation is finished, it is recommended to install the last plasterboard layer (ex. 12,5 mm) offset. The finale finishes possibilities are unlimited : wallpaper, facing, and so on.

VIDEO
