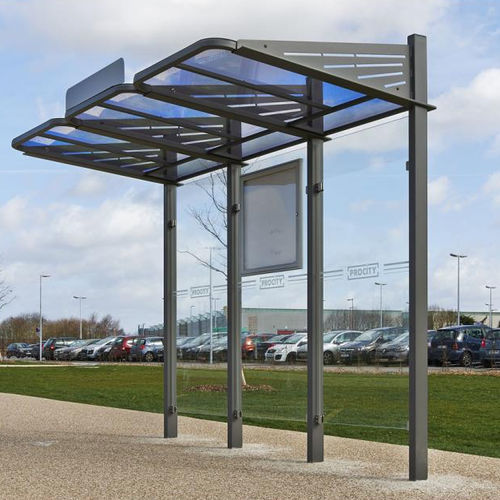

Steel bus shelter Conviviale®

PMMAglassanodized aluminum

Thanks to its elegance and modular assembly, the Conviviale bus shelter is a perfect fit for any location and allows for compliance with accessibility of public streets. Length of one unit: 3000 mm. Total depth: 1500 mm. Extension with intermediate module: 1000 mm. Square posts: steel tubes 100 x 60 mm. Under roof height: 2200 mm. Roof: tinted UV-resistant 6 mm PMMA glazing. Roof frame: 40 x 40 mm steel tubes with rain gutter. Beams: 3 mm gauge steel sheet. Rear and side cladding: 8 mm safety glass. Cladding attachments: pinch-grip system made from Zamak alloy with brushed finish. Bus stop sign: 160 mm high x 900 mm wide, galvanised steel lacquered in RAL 9006. Timetable display case: 750 x 750 x 30 mm (6 A4) in anodised aluminium. Advertising space: light box (1710 mm x 1160 mm display area) or “2000” display case (1750 mm x 1200 mm display area). Finish: galvanised and painted in our colours. Installation: concreted directly into ground.
