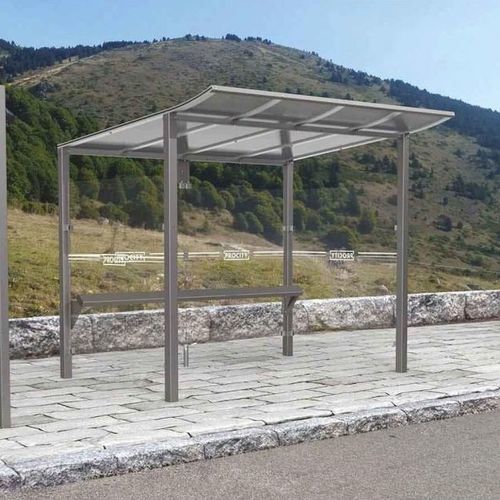

Glass bus shelter Modulo

steelaluminumpolycarbonate roof

The Modulo bus shelter offers a good waiting capacity thanks to its depth close to 2 meters. Its look is simple and slender thanks to its slightly curved roof. Standardize your urban spaces for more harmony, thanks to the Modulo smoking shelter and the Modulo bicycle shelter also available. Two lengths: 2500 or 5000 mm. Total depth: 1985 mm. Square posts: 70 x 70 mm steel tubes. Under roof height: min. 1942 mm, max. 2100 mm. Roof: anodised aluminum profiles with cross members in 40 x 40 mm steel tube and 10 mm anti-UV-treated cellular polycarbonate panels. Rear and side cladding: 5 mm safety glass. Cladding attachments: pinch-grip system made from Zamak alloy with brushed finish. Advertising space: “2000” anodised display case (1270 x 1160 mm display area). Finish: galvanised and painted in our colours. Installation: concreted directly into ground. Option timetable display case: 750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium.
