Recessed ceiling spotlight BIONIQ EVO PINHOLE TRIMLESS
LEDroundIP65

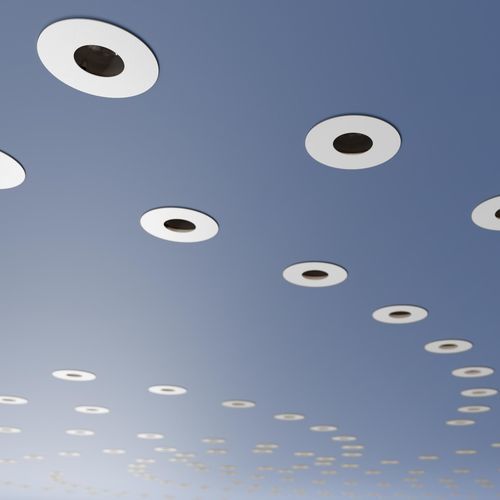

Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65
Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65
Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65 - image - 2
Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65 - image - 3
Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65 - image - 4
Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65 - image - 5
Recessed ceiling spotlight - BIONIQ EVO PINHOLE TRIMLESS - PROLICHT - LED / round / IP65 - image - 6
Add to favorites
Compare this product
Go to the PROLICHT website for more information

Characteristics

Type
recessed ceiling
Light source
LED
Shape
round
Protection class
IP65
Dimmable
dimmable
Number of lights
single
Other characteristics
0°- 30° pivoting, orientable
Length

Min.: 105 mm
(4 in)

Max.: 105 mm
(4 in)

Width

Min.: 67 mm
(3 in)

Max.: 67 mm
(3 in)

Power

Min.: 12.8 W
(0.02 hp)

Max.: 12.8 W
(0.02 hp)

Luminous flux

Min.: 289 lm

Max.: 289 lm

Color temperature

2,400 K

Description

Overview
BIONIQ PINHOLE combines extreme design restraint with excellent visual comfort. The spotlight is engineered for applications requiring discreet architectural integration and very low‑glare lighting. Trimless round recessed design, 30° pivot concealed above the ceiling, IP65 as standard and tool‑free exchange of lenses and accessories provide planning and application flexibility.

Features
  • Round, swivelling recessed LED spotlight
  • Trimless installation
  • 30° pivotable, concealed behind ceiling
  • IP65 as standard
  • Tool‑free exchange of lenses and accessories
  • Low‑glare optical concept for architectural integration

Product family / series
  • Family: BIONIQ
  • Sub-family: BIONIQ EVO PINHOLE

Technical data / specifications
  • Light output: 289 lm
  • LED module power: 12.8 W
  • Efficiency (typ.): ≈22.5 lm/W
  • Dimming: dependent on driver
  • Visible diameter: 67 mm
  • Depth (P): 105 mm
  • Cutout diameter: 75 mm
  • Colour temperature: 2400 K
  • Beam angle: Spot 20°
  • Max tilt: up to 30° (concealed behind ceiling)
  • Protection rating: IP65 (standard)
  • Exchangeability: tool‑free exchange of lenses and accessories
  • Typical application: discreet architectural integration, low‑glare lighting
  • Data items referenced on page: colour option code 03, ceiling_thickness 12, reflector code 20
