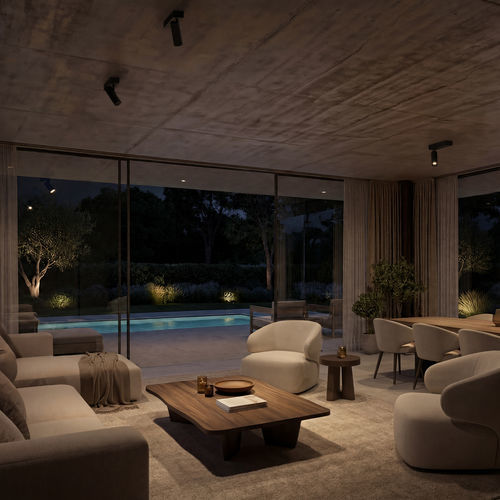

Surface-mounted spotlight IMAGINE

LEDtubularIP40

Product Overview
IMAGINE SURFACE is a surface-mounted ceiling spotlight series designed for lighting designers and architects who require precise, adjustable accent lighting integrated into contemporary interiors. The fixture features an articulated arm with 350° rotation and 90° tilt for accurate aiming and a compact form available in two diameters for flexible design integration.

Features

• Surface-mounted LED spotlight delivering direct light for targeted accents in showrooms, galleries, offices, hospitality and residential interiors.
• Articulated arm: 350° rotation and 90° tilt for precise aiming and flexible installation layouts.
• Two diameter options: 45 mm and 65 mm to suit different aesthetic and photometric requirements.
• Multiple control options; example configuration shown with On/Off dimmer (other control variants configurable).
• Advanced reflector technology for high luminous efficacy and selectable beam angles from narrow spot to wide flood.
• Optional optical accessories: honeycomb louvre and diffusion lens to shape glare and light distribution.
• Anti-glare ring with anti-reflection coating to support improved UGR values in interior spaces.

Product Data (example configuration)

• SKU / internal code shown on page: 320-1600 03 03 02 00 27
• Luminous flux: 576 lm
• LED module power: 12.9 W (approx. 44.7 lm/W for shown configuration)
• Dimmer: On/Off (configurable control options available)
• Dimensions (example): Ø 46 mm, Length: 260 mm, Width: 55 mm, Height: 35 mm
• Color temperature (example): 2700 K
• Beam angle (example): Spot 12° (other beam angles available from spot to wide flood)

Technical specifications

• Mounting type: surface-mounted ceiling spotlight
• Rotation: 350°
• Tilt: 90°
• Available diameters: 45 mm, 65 mm
• Reflector technology: optimized for maximum light output
• Optical accessories: honeycomb louvre, diffusion lens (optional)
• Anti-glare: anti-glare ring with anti-reflection coating (improved UGR)
• Control options: On/Off shown; additional control variants available
• Example luminous output / power: 576 lm / 12.9 W
• Example color temperature: 2700 K
• Example beam angle (spot): 12°
