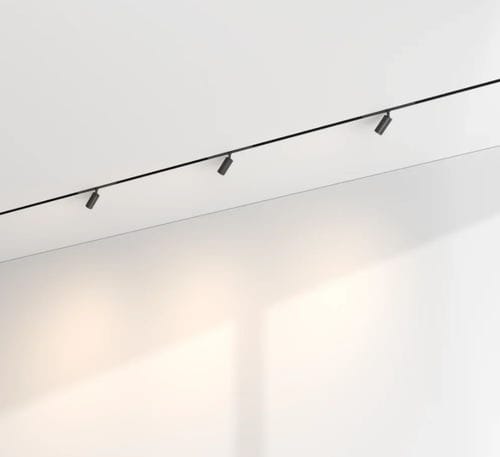

Wall washer track-light system MINIMAL

orientabledimmableDALI

Overview
MINIMAL TRACK is a trimless track lighting system designed for seamless architectural integration in commercial and built-environment projects. Delivered with a PROLICHT configurator option, it enables project-specific layouts, custom lengths, junctions and interchangeable inserts for tailored luminaires and profiles.

Key features

• Trimless recessed track system for discreet integration into ceilings and coves
• Configurable via the PROLICHT online configurator: custom lengths, T/L/X junctions and a variety of inserts
• Flexible mounting: recessed/trimless installation and track-mounted variants
• Available in the PROLICHT colour palette and multiple finish options; custom RAL available
• Compatible with major control ecosystems (DALI, Casambi, Matter, TouchDim) and multiple dimming standards

Design & customization

• Project-specific configuration of colour, lumen output and light distribution
• Tool-free assembly components and multi-axis positioning for precise alignment
• Direct, indirect and mixed direct/indirect emission options for varied lighting concepts

Light & optics

• Selectable correlated colour temperatures: 2700K, 3000K, 3500K, 4000K and Tunable White ranges
• Beam angles from narrow superspot to wide flood (platform examples: approx. 10°–48°)
• Precision optics with interchangeable lenses/reflectors, wallwash and anti-glare options to control distribution

Performance & control

• High-efficiency LED modules with high lm/W figures and multiple CRI options for accurate colour rendering
• Integration options: DALI, Casambi, Matter, TouchDim, 1-10V and other supported dimming protocols

Downloads & configurator
Configured assemblies generate downloadable planning assets: datasheets (PDF), mounting instructions, photometry (IES/LDT), CAD/DWG, BIM (RFA), GLDF and 3D models for specification and documentation workflows.

Technical specifications

• Type: Trimless track lighting system (configurable profile/system)
• Model / commercial name: MINIMAL TRACK
• Mounting: Recessed / trimless and track-mounted options
• Light sources: LED modules (selectable CCT and Tunable White)
• Colour temperatures: 2700K / 3000K / 3500K / 4000K and Tunable White ranges
• Beam control: Multiple beam angles including superspot, spot, flood, wide flood (platform examples 10°–48°)
• Control & dimming: DALI, Casambi, Matter, TouchDim, 1-10V and other supported dimming options
• Finishes: PROLICHT colours and finishes; custom RAL options
• Downloads after configuration: Datasheet (PDF), mounting instructions, photometry (IES/LDT), CAD/BIM files (DWG, RFA), GLDF and 3D models
• Configurator: PROLICHT online configurator for real-time visualization, system layout and downloadable technical files
