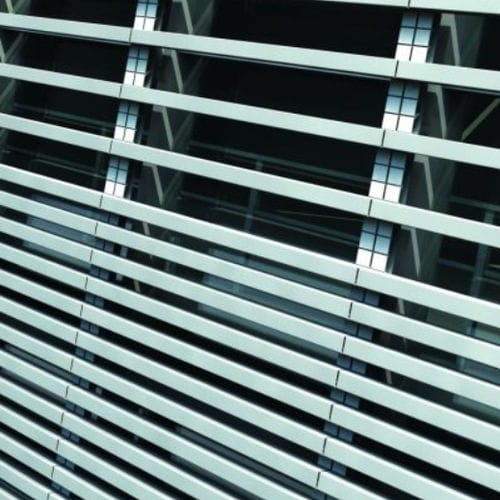

Aluminium solar shading XPAN BAGUETTE

for facadevertical

is an innovative brise-soleil solution. It has been designed for an easy simple and intuitive installation with consequent economical benefits. The elements forming the system are essentially:Baguette profile – Extruded aluminium square tube especially designed.XRAIL Support – Extruded aluminium element made of 50mm. wide XRAIL slices, having grooves to receive the Baguette profiles.The assembly of these two elements will create 295mm. wide modules. These modules will have a maximum length of 6000mm.Each module, to be assembled prior to final erection, will then be installed to the substructure utilizing the V-Lock fixing system.Baguette profiles can be positioned at various distances according to the XRAIL support groove pitch.
