Panel cladding XWAVEaluminumcorrugatedlarge format
Add to favorites
Compare this product
Characteristics
- Configuration
- panel
- Material
- aluminum
- Finish
- corrugated
- Technical characteristics
- large format
Description

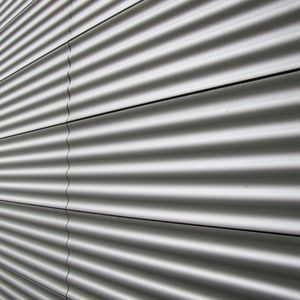

The sinusoidal XWAVE profile gives interesting shadow effects to the design of the wall cladding. It is simple, classy and, to our experience, very attractive when combined with XLINE.
Aluminium alloy: EN-AW 6060
Temper: T6
V-Lock fixing system
Visible surface thickness: 2,8mm.
Module: 300mm.
Profile depth: 33mm.
Wave pitch: 59mm.
Wave depth: 10mm.
Maximum length: 6000mm.
Finishes: Polyester Powder Coating (PPC) 60µm; Anodizing.
Dimensional tolerances according to UNI EN 755-9
