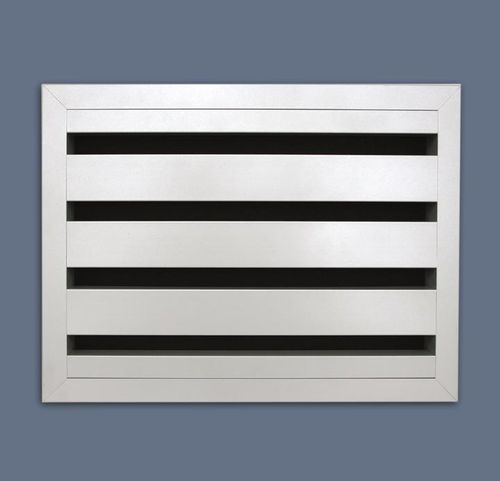

Aluminum ventilation grill 468AK/1

rectangularacoustic

• Made from aluminium sec tions: AlMgSi 0.5 (according to EN 12020-2) • Finishing: anodised in satin colour (20 microns) or powder-coated in any R AL or Syntha Pulvin® colour (60-80 microns) (for UK min 40 microns) • Sound absorbing material: synthetic foam Available models • The 468 AK/1 is always made to measure, up to a maximum size of 776 x 776 mm. Dimensions • Minimum dimensions: 200 x 181 mm H • Maximum dimensions: 776 x 776 mm H • Fitting dimensions: 7 mm more than the louvre dimensions. • Height in 85 mm steps (blade pitch) • Depth to fit: 48 mm • Flange size: 30 mm
