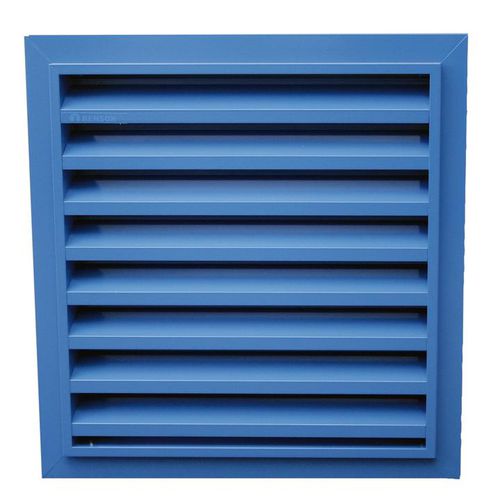

Aluminum ventilation grill 484

square

Made from aluminium sections: AlMgSi 0.5 (according to EN 12020-2) Finishing: anodised in satin/bronze colour (20 microns) or powder-coated in any RAL or Syntha Pulvin® colour (60-80 microns) (for UK min 40 microns) Stainless steel 304 insect screen (2.3 x 2.3 mm) or mesh (6 x 6 mm) on request Options Controllable type 484/VA same build as type 414/VA Water channel Fixing To be fitted like double glazing Dimensions Frame thickness: 24 or 28 mm Specify on ordering: full width x height in mm Minimum dimensions: 220 x 220 mm
