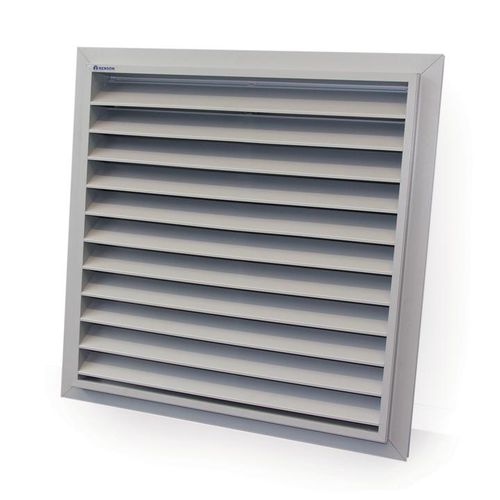

Aluminum ventilation grill 483

square

Made from aluminium sections: AlMgSi 0.5 (according to EN 12020-2) Finishing: anodised in satin/bronze colour (20 microns) or powder-coated in any R AL or Syntha Pulvin® colour (60-80 microns) (for UK min 40 microns) Stainless steel 304 mesh (6 x 6 mm) or insect screen (2.3 x 2.3 mm) on request Options Water channel Fixing To be fitted like double glazing Dimensions Frame thickness: 24 mm (frame thickness of 8 to 50 mm on request) Specify on ordering: full width x height in mm Minimum dimensions: 385 x 385 mm
