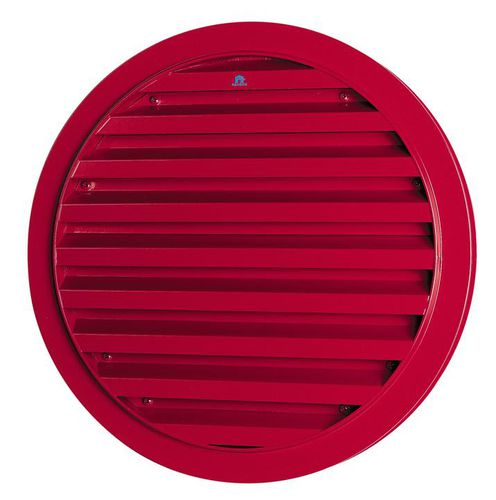

Aluminum ventilation grill 414R
round

aluminum ventilation grill
aluminum ventilation grill
Add to favorites
Compare this product


Characteristics

Material
aluminum
Shape
round

Description

• Made from aluminium sections: AlMgSi 0.5 (according to EN 12020-2) • Finishing: anodised in satin colour (20 microns) or powder-coated in any RAL or Syntha Pulvin® colour (60-80 microns) (for UK min 40 microns) • Stainless steel 304 insect screen (2.3 x 2.3 mm) or mesh (6 x 6 mm) on request Fixing • To be fitted like double glazing Dimensions • Frame thickness: 24 mm • Minimum diameter: 340 mm • Maximum diameter: - 1400 mm if anodised in satin colour - 1500 mm if powder-coated in RAL or Syntha Pulvin® colour - over 1500 mm: in two parts
