X-CYCLONE® Capture Hood with a separation efficiency of up to 99.9999 %; flame-arresting capability tested in accordance with international standards; hood frame made of stainless steel with circumferential collecting channel; internal cutting edges folded and free of burrs; hood bottom part of stainless steel welded in accurate to dimension; aerosol separator(s) fitted in inclined position in accordance with DIN EN 16282. Blanc panels are available to cover empty spaces between separators. Separators and blank panels are removable without tools and suitable for cleaning in the dishwasher. Fixed suspension points on the hood frame; hood and components are tested for compliance with VDE and UL standards.
Entire design in accordance with DIN EN 16282 and BGR 111 (Workplace Health and Safety Regulations); corrosion resistance is guaranteed by manufacturing processes in compliance with the regulations of the German Rustproof Stainless Steel Trademark Association (Warenzeichenverband Edelstahl Rostfrei e.V.); development, design and production based on the SNS principle
Length of the hood: 3500 mm
Width of the hood: 1200 mm
Height of the hood: 420 mm
Exhaust air volume: 2240 m³/h

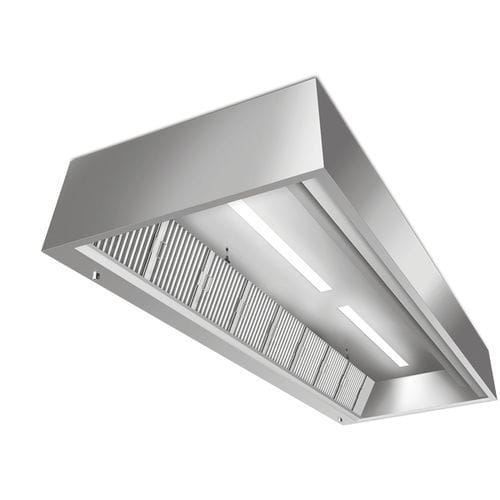

Type: X-CYCLONE® wall-mounted hood EAS
Material of the X-CYCLONE® Capture Hood EAS:
Stainless steel, material no. 1.4301, finish-ground surface, 180 grit, ground on one side, with protection film; processing in accordance with the regulations of the German Rustproof Stainless Steel Trademark Association (Warenzeichenverband Edelstahl Rostfrei); all components of the hood frame are made of rustproof materials inside and outside; galvanised components are not permitted either in or on the hood frame
