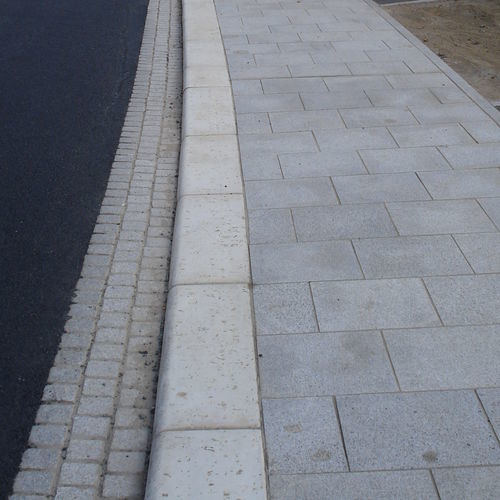

Stone mountable curb T3 VAUBAN
rectangularstone look

Stone mountable curb - T3 VAUBAN - REPLIK - rectangular / stone look
Stone mountable curb - T3 VAUBAN - REPLIK - rectangular / stone look
Stone mountable curb - T3 VAUBAN - REPLIK - rectangular / stone look - image - 2
Stone mountable curb - T3 VAUBAN - REPLIK - rectangular / stone look - image - 3
Stone mountable curb - T3 VAUBAN - REPLIK - rectangular / stone look - image - 4
Add to favorites
Compare this product
Go to the REPLIK website for more information

Characteristics

Material
stone
Shape
rectangular
Other characteristics
stone look
Length

1,000 mm
(39 in)

Height

300 mm
(12 in)

Thickness

160 mm
(6 in)

Description

Description
  • Kerb 100×30
  • STONE‑SAWN FINISH
  • Unit of sale (U): lm — equivalence: 1 lm = 1 kerb


Geometric characteristics
  • Length: 100 cm
  • Width: 30 cm
  • Thickness: 16 cm
  • Weight (kg/U): 105
  • Packaging (U/pallet): 15 (disposable pallet 110×90)


Mechanical characteristics
  • Breaking by splitting (MPa): 5.2
  • Water absorption: < 6 %
  • Freeze/thaw resistance: 0.758 kg/m²
  • Skid resistance: medium 62


Standards
  • NF – EN – 1339
  • Fascicle 29 of 30 May 2021
  • NF – P 98-335


Installation (main recommendations)
  • Installation should be carried out between +5°C and +30°C on a sound substrate.
  • Mortars should be prepared or supplied as work progresses.
  • The mortar bedding is leveled with a straightedge and executed progressively. Its thickness should be as uniform as possible (~4 cm).
  • Slabs must be moistened, particularly in hot weather.
  • During installation, mix products of different colors/shades from different batches.
  • Joints are left between slabs. Joints should be filled with mortar not earlier than 24 h after laying and at most 72 h after. Minimum joint width: 5 mm.
  • Expansion joints should be provided in accordance with normative requirements (10 lm or 20 m²).
  • Immediately after jointing, clean the pavement to avoid any residue or deposit on the slab surface.


Maintenance
  • Original colours are very stable; minimal maintenance is generally sufficient as natural patina develops over time.
  • Application of a mineralising treatment will facilitate cleaning and prolong the life of the original surface appearance.
  • High‑pressure washers or acidic products are not recommended as they may cause irreversible alterations.
  • De‑icing salts should be used sparingly, avoiding excessive lingering residues.


Appearance (table)
APPEARANCE: Stone‑sawn finish

Technical characteristics / specifications
  • Product: Kerb T3 Vauban
  • Appearance: stone‑sawn finish
  • Unit of sale: lm (1 lm = 1 kerb)
  • Dimensions (cm): 100 × 30 × 16
  • Weight: 105 kg / unit
  • Packaging: 15 units / pallet (disposable pallet 110×90)
  • Breaking by splitting (MPa): 5.2
  • Water absorption: < 6 %
  • Freeze/thaw resistance: 0.758 kg/m²
  • Skid resistance: medium 62
  • Standards: NF – EN – 1339, Fascicle 29 of 30 May 2021, NF – P 98-335
