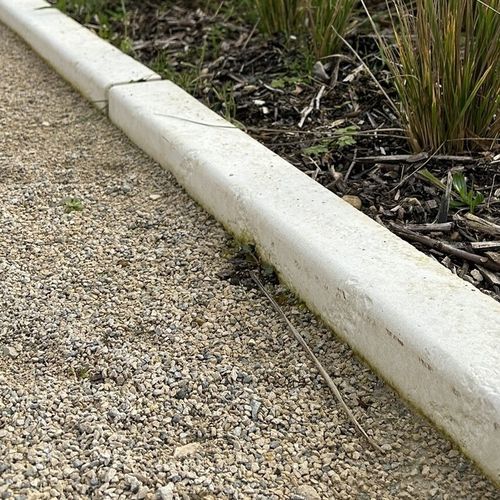

Stone mountable curb BORDURE P1
straightcornerstone look

Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 2
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 3
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 4
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 5
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 6
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 7
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 8
Stone mountable curb - BORDURE P1 - REPLIK - straight / corner / stone look - image - 9
Add to favorites
Compare this product
Go to the REPLIK website for more information

Characteristics

Material
stone
Shape
straight, corner
Other characteristics
stone look
Length

Min.: 250 mm
(10 in)

Max.: 1,000 mm
(39 in)

Thickness

80 mm
(3 in)

Description

DESCRIPTION
  • Straight curb 100×20
    Sawn stone finish
    Unit of sale (U) = linear metre (1U = 1 curb)
  • Corner curb 25×25
    Sawn stone finish
    Unit of sale (U) = unit (1U = 1 curb)


DIMENSIONS AND PACKAGING
  • Straight curb 100×20 — length (cm): 100, width: 20, thickness: 8, weight (kg/U): 33, packaging (U/pallet): 36 (disposable pallet 110×90)
  • Corner curb 25×25 — length (cm): 25, width: 25, thickness: 8, weight (kg/U): 33, packaging (U/pallet): 20 (disposable pallet 110×90)


TECHNICAL SPECIFICATIONS
  • Bending/flexural strength (MPa): 5.2
  • Water absorption: < 6 %
  • Freeze–thaw resistance: 0.758 kg/m²
  • Slip resistance: average 62
  • Standards: NF – EN – 1339; Fascicle 29 of 30 May 2021; NF – 98 335


INSTALLATION
  • Install at ambient temperatures between +5°C and +30°C on a sound substrate.
  • Mortars should be prepared or supplied progressively as work advances.
  • The mortar bedding must be leveled with a straightedge and laid progressively. Target uniform thickness ≈ 4 cm.
  • Elements should be dampened, especially in hot conditions.
  • Mix products from different batches or shades on site to achieve a uniform appearance.
  • Leave joints between slabs; jointing with mortar should be carried out no earlier than 24 h and no later than 72 h after laying. Joints should be as narrow as possible but not less than 5 mm.
  • After jointing, clean the surface to avoid residue or film formation.
  • Provide expansion joints according to standards (every 10 linear metres or 20 m²).


MAINTENANCE
  • Original colours are stable; minimal maintenance is generally sufficient.
  • Applying a mineral sealing treatment facilitates cleaning and prolongs surface appearance.
  • Not recommended: high-pressure cleaners and acidic products (risk of irreversible damage).
  • De-icing salts should be used sparingly and without prolonged residue.


COLOR RANGE
Colour samples available for the sawn stone finish (visual presentation of shades).

Features / technical specifications
  • Model: Curb P1
  • Finish: sawn stone
  • Variants: straight curb 100×20; corner curb 25×25
  • Straight curb dimensions (cm): length 100 × width 20 × thickness 8
  • Corner curb dimensions (cm): length 25 × width 25 × thickness 8
  • Weight (kg / unit): 33
  • Unit of sale straight curb: linear metre (1U = 1 curb)
  • Unit of sale corner: unit (1U = 1 curb)
  • Packaging (U/pallet): straight curb 36 (disposable pallet 110×90); corner 20 (disposable pallet 110×90)
  • Bending/flexural strength (MPa): 5.2
  • Water absorption: < 6 %
  • Freeze–thaw resistance: 0.758 kg/m²
  • Slip resistance: average 62
  • Standards: NF – EN – 1339; Fascicle 29 of 30 May 2021; NF – 98 335
