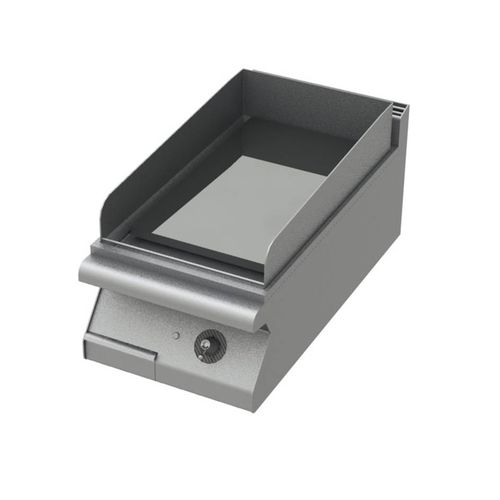

Electric fry-top, smooth chrome 20 dm² - 6 kW - Upper element only - Width 400 mm - Shielded stainless steel heating element - Controlled by energy controller - Built-in grease collector with recovery tank - Removable splashback
PRESENTATION
PLSN 20 G - RC8 PLSN 20 E - RC8
Fry-top 20 dm², gas or electric - Width 400 mm
Smooth or ribbed steel, smooth duplex stainless steel, smooth
or ribbed chrome plate
PLSN 40 G - RC8 PLSN 40 E - RC8
Fry-top 40 dm², gas or electric - Width 800 mm
Smooth duplex stainless steel, smooth or ribbed chrome plate
Conformity
•Comply with standards EN 203-1, EN 203-2, EN 60335-1 and
EN 60529
•Electrical safety protection index IP 35
DESCRIPTION
•304 stainless steel top, 30/10 thick.
•Stainless steel side structures, 20/10 thick.
•Upper elements to put on lower elements or flat surfaces, or for
"bridge" assembly.
•Gas fry-tops must not be put on gas oven.
•Stainless steel control panel with ergonomic profile.
•Rounded front edges.
•Top with back plate.
•Removable splashback.
•Welded and sealed drip channel around the plate, which runs
into a stainless steel GN 1/3 tray H. 55 mm.
DIMENSIONS OF THE
GRILL PLATE
570 x 320 mm (PLSN 20)
570 x 720 mm (PLSN 40)
WEIGHT
81 kg (PLSN 20 G)
97 kg (PLSN 40 G)
124 kg (PLSN 40 G chrome)
90 kg (PLSN 20 E)
105 kg (PLSN 40 E)
130 kg (PLSN 40 E chrome)
Duplex stainless steel plate
•Smooth duplex stainless steel heat diffusing base plate, 10 mm
thick (PLSN 20) or 15 mm thick (PLSN 40).
•The plate has 1 heating area (PLSN 20) or 2 heating areas
(PLSN 40) controlled separately.
Steel plate
•Very thick (12 mm) steel plate, either smooth or ribbed.
•The plate has 1 heating area.
