Roof stormwater management module AQUABOX

for homefor roadsfor industrial applications

Product summary
Modular, flexible underground trench system for decentralized rainwater infiltration using stackable AQUABOX elements made of virgin or recycled polypropylene.

Solutions for decentralized infiltration
Infiltration refers to the controlled introduction of runoff into the ground via engineered systems. Urbanization increases impervious surfaces from buildings, parking lots and roads, which can overburden sewer systems and raise flood risk. Decentralized infiltration systems are often required for sustainable rainwater management. Only uncontaminated rainwater should be discharged into an infiltration system.

Suitable rainwater sources

• Non-metallic roof surfaces in residential areas
• Terrace surfaces in residential areas

The AQUABOX in detail

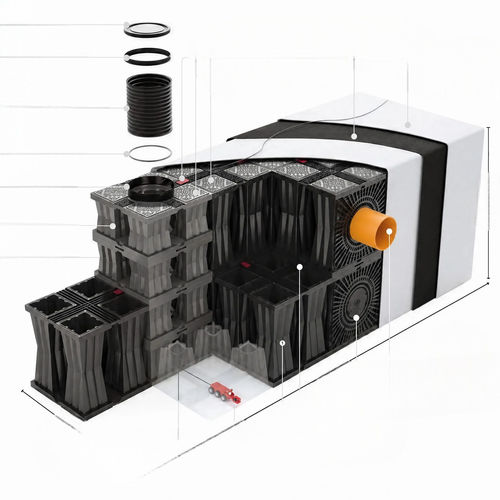

Aquabox is a modular element with a hollow, truncated-cone geometry manufactured from virgin or recycled polypropylene (PP) to create underground infiltration trenches. Elements are delivered stacked, assembled on-site and installed. Modules are interconnected with specialized coupling elements. High mechanical strength enables installation in urban, industrial and commercial areas. Installation beneath trafficked surfaces is permissible (rated for SLW60 loads) when specified installation guidelines and minimum cover depths are strictly observed.

Inspection and maintenance
The internal geometry of the modules makes the system accessible for inspection, maintenance and cleaning. The elements allow entry of a self-propelled camera crawler, enabling video inspection of the infiltration trench in all directions and on all levels. Special inspection modules (Aquabox CUBE) facilitate inspections and permit multi-layer trench designs. A stack of four Aquabox CUBE elements equals 80 cm in height, equivalent to a stack of two standard Aquabox elements.

Technical data and dimensions
Code | Description | Dimensions
EDAQUAB0400* | Aquabox ST | 75 x 75 x H43
EDAQUBC0200* | AQUABOX CUBE ST | 75 x 75 x H23
EDAQSWG0033* | SIDE GRATING ST | (article reference: 7600059110)
EDAQTOC0024* | ST Upper Termination | Ø40 (article reference: 7600059110)
EDAQJOI0035* | Single Connector | (article reference: 7600059110)
EDAQDOJ0070* | Double Connector | 12 x 7 x H7

*Palletized goods: quotations for load classes SLW 30 and SLW 60 are available on request.

Technical characteristics / specifications

• Material: virgin or recycled polypropylene (PP)
• Geometry: hollow, truncated-cone modular elements
• Configuration: delivered stacked, assembled and interconnected on-site with coupling elements
• Installation areas: suitable for urban, industrial and commercial installations; can be installed beneath trafficked surfaces when installation guidelines and minimum cover depths are observed (SLW60 capability)
• Inspection: internal access allows self-propelled camera crawler inspection and video inspection in all directions and levels
• Variants & accessories: Aquabox ST (standard module), Aquabox CUBE (inspection module), side gratings, upper terminations, single and double connectors, D4 ST cover
• Typical module dimensions: Aquabox ST 75 x 75 x H43; Aquabox CUBE ST 75 x 75 x H23; connector and accessory dimensions as listed in the technical table
• Stacking: four CUBE modules = 80 cm height = two standard Aquabox modules
