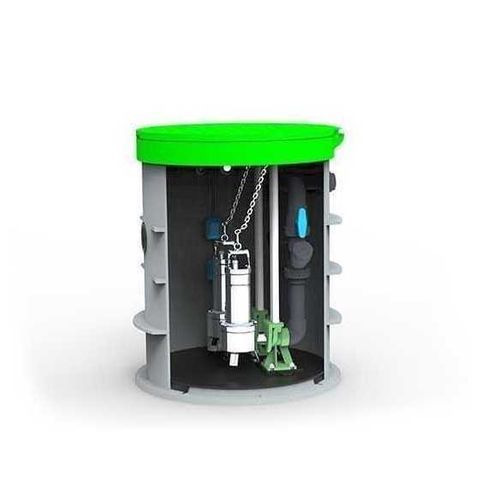

Pump station ROPUMP DN 800

Overview
The RoPump DN 800 domestic pumping station conveys wastewater from low-lying points to the sewer network, a wastewater treatment plant or a septic tank where gravity drainage is not possible. It is engineered for reliable underground installation and operation in residential, commercial and light agricultural settings.

Typical Areas of Application

• Residential and vacation homes
• Commercial buildings and small industrial sites
• Agricultural operations and farm outbuildings

Key Features

• PE (polyethylene) shaft designed for underground installation and corrosion resistance
• Compact DN 800 diameter for space-efficient integration
• Dual submersible pump configuration for operational redundancy and increased capacity
• Suitable for higher inflow volumes and projects with required pump redundancy

Scope of Delivery

• DN 800 shaft
• Submersible pumps (as specified per variant)
• Two float switches
• Check valve, shut-off valve and discharge pipe
• FEKA VS with lifting device (for FEKA variants)

Operation
Pumps are started when the wastewater level in the sump reaches the set activation height. Switching is controlled by float switches or level sensors. Sump volume and activation levels must be selected based on inflow rates, pump capacity and permitted switching cycles per hour. The discharge line must include a check valve to prevent backflow and a shut-off valve for maintenance or pump failure.

RoPump DN 800 in detail
The unit features a robust PE shaft capable of withstanding installation loads and continuous operation. The dual-pump setup improves availability under variable inflow conditions and enables handling of increased wastewater volumes with staged operation or redundancy.

Available pump types (examples)

• Pentax DG102 (submersible)
• DAB FEKA VS 1000 (submersible, with lifting device)

Product variants / dimensions (selected)
RoPump DN 800 × 1000
Code: 7700002011 — Dimensions: Ø800 × 1000 mm — Equipment: 2x Pentax DG102
Code: 7700002051 — Dimensions: Ø800 × 1000 mm — Equipment: 2x DAB FEKA VS 1000 (with guides and base)

RoPump DN 800 × 1200
Code: 7700002055 — Dimensions: Ø800 × 1200 mm — Equipment: 2x Pentax DG102
Code: 7700002052 — Dimensions: Ø800 × 1200 mm — Equipment: 2x DAB FEKA VS 1000 (with guides and base)

RoPump DN 800 × 1500
Code: 7700002033 — Dimensions: Ø800 × 1500 mm — Equipment: 2x Pentax DG102
Code: 7700002053 — Dimensions: Ø800 × 1500 mm — Equipment: 2x DAB FEKA VS 1000 (with guides and base)

RoPump DN 800 × 1800
Code: 7700002066 — Dimensions: Ø800 × 1800 mm — Equipment: 2x Pentax DG102
Code: 7700002054 — Dimensions: Ø800 × 1800 mm — Equipment: 2x DAB FEKA VS 1000 (with guides and base)

Accessories (selected)

• Covers and frames: Cover DN 800 with frame, hinged (green) — Cover class H8
• Control units: SMART EVO 1 (single pump), SMART EVO 2 (two pumps), variants with GSM modules and three-phase options
• Coarse solids separators (sizes for DN600 / DN800 / DN1200)
• Water level monitoring: float switches and level sensors
• Access shaft / dome extensions and outdoor pedestals/columns

Notes
The control unit and cover are not included in the basic scope of delivery. Control units and accessories (alarm/control boxes, GSM-equipped controllers, lifting devices) are available separately. Pump selection and sump sizing must be matched to site inflow volumes and allowed switching cycles.
