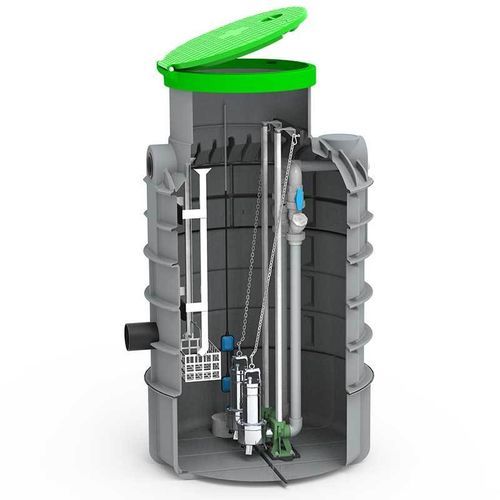

Pump station ROPUMP DN 1200

Overview The RoPump DN 1200 is a lifting station designed to convey wastewater and rainwater where gravity drainage is not possible. It enables backflow-proof discharge from below the backflow level to a higher discharge point and operates fully automatically. The system is intended for municipal applications and high inflow volumes and features a dual-submersible pump configuration for continued operation and redundancy.

Typical Areas of Application

• Municipal wastewater infrastructure: Pumping sewage in sewer networks lacking sufficient gradient.
• Large residential developments & districts: Drainage for multiple buildings or entire residential complexes.
• Commercial & industrial facilities: Discharge of large volumes of sewage and process water.

Scope of Delivery

• DN 1200 polyethylene (PE) sump
• 2 submersible pumps (variant-dependent: PENTAX DV 200 or DAB FEKA VS 1200)
• 2 float switches
• 2 check valves
• 2 shut-off valves
• Discharge pipe
• FEKA VS variant supplied with guides and base; FEKA VS variant available with lifting device

Note Control unit and cover are not included in the scope of delivery.

Operation Pumps start when wastewater reaches preset activation levels. Pump control is based on level switches or equivalent sensors. Chamber volume and activation levels are selected according to inflow rates, pump capacity and permitted switching cycles. Two pumps provide redundancy and allow uninterrupted operation in case of a pump fault. The discharge line is fitted with check valves to prevent backflow; shut-off valves permit isolation for maintenance.

Pump types

• PENTAX DV 200 (example variant)
• DAB FEKA VS 1200 (example variant; supplied with guides and base; FEKA variant available with lifting device)

Advantages

• Dual-pump arrangement for high delivery capacity, load sharing and redundancy.
• Automatic operation via level switches for demand-driven control.
• Adaptable design to match required flow rates and pump capacities.
• Efficient handling of large wastewater volumes in continuous operation.
• PE sump: corrosion-resistant and durable under installation and operational loads.
• Backflow-proof discharge suitable for installations below the backflow level.
• Check valves to prevent return flow and shut-off valves to ensure safe maintenance.
• Modular expandability — control units and options available as accessories.

Accessories (examples listed on the product page)

• Covers and frames (various DN/covers and hinge options)
• Control units: SMART EVO 1 (single pump 230 V), SMART EVO 2 (two pumps 230 V), SMART EVO 2 with GSM module, CONTROL units for higher-power three-phase pumps and EXPRESS controllers
• Coarse solids separators (variants for DN600, DN800, DN1200)
• Guide assemblies for coarse solids separators (different heights)
• Water level monitoring devices, level sensors and float switches (10 m / 20 m cable options)
• Outdoor pedestals/columns and access shaft / dome extensions for different DN variants

Product tables (selection)
Code | Dimensions [mm] | Equipment
7700005044 | Ø1200 × 2300 | 2x PENTAX DV 200
7700002031 | Ø1200 × 2300 | 2x DAB FEKA VS 1200 with guides and base

Scope of delivery (concise)

• PE sump DN 1200
• 2 submersible pumps (depending on selected variant)
• 2 float switches
• 2 check valves and 2 shut-off valves
• Discharge pipe
• FEKA VS variant includes lifting device

Characteristics / Technical specifications

• Denomination: RoPump DN 1200
• Shaft material: polyethylene (PE), corrosion-resistant
• Nominal diameter: DN 1200
• Typical installed height examples: Ø1200 × 2300 mm (product variants available)
• Pump arrangement: dual-submersible pump configuration for redundancy and high capacity
• Available pump variants: PENTAX DV 200; DAB FEKA VS 1200 (with guides and base; FEKA with lifting device option)
• Control: pump switching via level switches or sensors (control unit not included)
• Included items: 2 float switches, 2 check valves, 2 shut-off valves, discharge pipe
• Excluded items: control unit and cover (sold separately as accessories)
• Typical applications: municipal wastewater networks, large residential developments, commercial/industrial facilities
