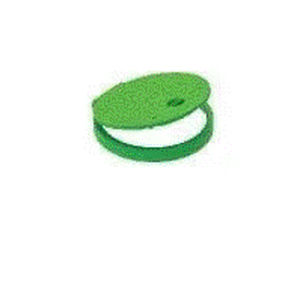

PE manhole cover

round

Overview

• Accessory categories: Covers and risers, Covers and adapters, Pipe seals, Gutter inlet, Non-filter inlet, Filtered inlet, Electronic gauge, Fine filters, Reinforcement clamps, Covers and risers.

Products (examples listed on the page)
COVER DN 400
Code: 7100061710
Walking cover in PE, load capacity up to 2 kN, dimensions Ø400 x 100 mm
Compatible tanks: RoOki 500 L, RoOki 1.000 L

EXTENSION Ø 400 x 200
Code: 7100063580
Extension in PE, dimensions Ø400 x 200 mm
Compatible tanks: RoOki 500 L, RoOki 1.000 L

COVER DN 500
Code: 7104111660
Walking cover in PE, load capacity up to 2 kN, dimensions Ø500 x 80 mm
Compatible tanks: RoOki 1.500 L, RoOki 3.500 L

EXTENSION Ø 500 x 315
Code: 7104036060
Extension in PE, dimensions Ø500 x 315 mm
Compatible tanks: RoOki 1.500 L, RoOki 3.500 L

COVER / LOAD CAPACITY - DN 600 (variants)
SCREWED WALKING COVER IN PE WITH HINGE DN600
Code: 7600088710
Telescopic extension in PE, dimensions Ø600 x 400 mm (telescopic) — compatible with Roterra, RoBox, Roterra 2450 (all volumes)

ASSEMBLED COVER DN600
Code: 7100520240
Cover in PE, load capacity up to 2 kN, dimensions Ø720 x 125 mm
Compatible tanks: RoCko, RoVoda, RoDrink (all volumes) and other listed models

EXTENSIONS DN 600 (other)
EXTENSION Ø600 x 250 mm — Code: 7100520630
EXTENSION Ø600 x 500 mm — Code: 7100520640
ADDITIONAL EXTENSION DN600 x 500 — Code: 7113110700

COVER DN 800 / DN 1000 (examples)
ASSEMBLED COVER DN800 — Code: 7100520620 — PE cover load 2 kN, dimensions Ø855 x 130 mm (example references and compatibilities listed)
ASSEMBLED COVER DN1000 — Code: 7100520970 — PE cover load 2 kN, dimensions Ø1135 x 160 mm (example references and compatibilities listed)

ADAPTERS
COVER ADAPTER DN600 — Code: 7100520310 — Adapter for cover in PE, dimensions Ø600
COVER ADAPTER DN800 — Code: 7100520610
COVER ADAPTER DN1000 — Code: 7100520880
Adapters available to match different covers and ensure connection to various tanks/inlets.

Pipe seals
Seals are used to make tank inlets and outlets watertight.

• SEAL Ø50 mm
• SEAL Ø110 mm
• SEAL Ø125 mm
• SEAL Ø160 mm
• SEAL Ø200 mm
• THREADED SEAL 1/2" up to 6/4"

Gutter inlet / drainage inlets
Gutter inlet (connection element between gutter and inlet pipes to the tank): outlets DN110 / DN125 / DN160. Examples: Gutter inlet L (code 7100070951), dimensions and layouts according to model (Ø250 x 600 etc.).

Non-filter inlet / Filtered inlet
Non-filter inlet: standard inlet/outlet devices for drainage.
Filtered inlet: filtering versions (e.g. mesh, carbon filter + mesh) to retain leaves, sand and particles; references and dimensions (Ø400 x 800, Ø400 x 1000, Ø640 x 800, etc.) are indicated per model.

Filtration kit / Filters
INSTALLED FILTRATION KIT: indicative codes — 7100062480 (for 6000 L) and 7100062470 (for 8000 L).
Description: Inlet/outlet pipe DN110/DN160 mm, self-cleaning filter, overflow siphon, anti-surge boot. Example dimensions: 300 x 150 x 150.

Specific filtration systems for dedicated uses:

• Filtration system for sanitary/drinking water (e.g. code 7100065490) — mechanical filtration, chlorine, taste/odour treatment, often combined with UV unit.
• Filtration system for low-loaded water (e.g. code 7100092810) — central, UV disinfection, suitable for network water or rainwater.

Fine filters
Filters for fine particle filtration (various configurations and references according to size and filter media: mesh, carbon, etc.).

Electronic gauges
Ultrasonic gauge BASIC — Code: 7100065560 — Manufacturer: Apolo — Measures water level by ultrasound, transmitter/receiver, LCD display.
Ultrasonic gauge PROFI — Code: 7100063220 — Manufacturer: Navis — Advanced level measurements, display and outputs for integration.

Other elements
Reinforcement clamp for fixing and strengthening tank openings.
Telescopic covers and risers to adapt the height of the screen/cover to finished ground level (references and dimensions vary: Ø400, Ø500, Ø600, Ø800, Ø1000 mm and different heights).

Notes
The page shows many models and variants (different diameters / extensions / assembled / telescopic / hinged / adapters) with their product codes. Compatibilities (e.g. RoOki, Roterra, RoCko, RoVoda, RoDrink, RoBox) are indicated for each accessory according to tank volumes and ranges.

Technical characteristics / specifications

• Main material: PE (polyethylene) for covers, extensions, adapters and some parts.
• Load capacity (example covers): up to 2 kN for many references.
• Common dimensions: Ø400 x 100 mm, Ø400 x 200 mm, Ø500 x 80 mm, Ø500 x 315 mm, Ø600 x 125 mm, Ø600 x 250 mm, Ø600 x 500 mm, Ø600 x 400 mm (telescopic), Ø720 x125 mm, Ø855 x 70/130 mm, Ø1135 x 85/160 mm, etc.
• Example product codes: 7100061710, 7100063580, 7104111660, 7104036060, 7600088710, 7100520240, 7100520630, 7113110700, 7100520620, 7100520970, 7100520310, 7100520610, 7100520880, 7100062480, 7100062470, 7100065490, 7100092810, 7100065560, 7100063220, 7181530010, 7100065960, 7100066373, 7100066353, 7100065950, 7100074433, 7100074423.
• Gauges: ultrasonic technology, LCD display, transmitter/receiver, BASIC and PROFI versions (manufacturers: Apolo, Navis).
• Filters: mesh, carbon filters, self-cleaning systems and complete filtration kits for given volumes (e.g. 6000 L, 8000 L).
• Hydraulic connections: outlets and inlets DN110 / DN125 / DN160 mm, sealing joints for various diameters and thread types.
