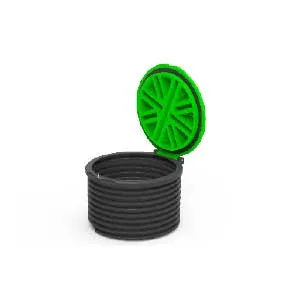

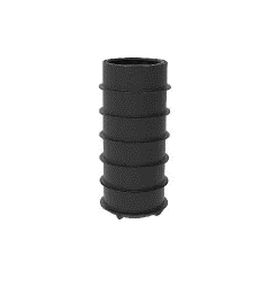

Polyethylene (PE) manhole

Accessory categories

• Covers and risers
• Covers and adapters
• Pipe seals
• Gutter inspection chamber
• Inspection chamber without filter
• Inspection chamber with filter
• Electronic level gauge
• Fine filters
• Clamp (reinforcement)
• Covers and risers (variants)

Products (extracts: IMAGE | NAME & CODE | DESCRIPTION | TANK)
IMAGE | NAME & CODE | DESCRIPTION | TANK
roto-dodatna-oprema-rezervoarji-za-vodo-pokrov-dn-400-rooki.jpg | COVER DN 400 [Code: 7100061710] | Walkable cover in PE, load capacity up to 2 kN, dimensions Ø400 x 100 mm | RoOki 500 L; RoOki 1,000 L
roto-dodatna-oprema-rezervoarji-za-vodo-extend-Ø400-200.jpg | EXTENSION Ø400 x 200 mm [Code: 7100063580] | Extension in PE, dimensions Ø400 x 200 mm | RoOki 500 L; RoOki 1,000 L
roto-dodatna-oprema-rezervoarji-za-vodo-pokrov-dn-500.jpg | COVER DN 500 [Code: 7104111660] | Walkable cover in PE, load capacity up to 2 kN, dimensions Ø500 x 80 mm | RoOki 1,500 L; RoOki 3,500 L
roto-dodatna-oprema-rezervoarji-za-vodo-extension-Ø500-315.jpg | EXTENSION Ø500 x 315 mm [Code: 7104036060] | Extension in PE, dimensions Ø500 x 315 mm | RoOki 1,500 L; RoOki 3,500 L
roto-dodatna-oprema-rezervoarji-za-vodo-pokrov-dn-600-sestavljen-rocko.jpg | COVER DN 600 [Code: 7100520610] | Cover in PE, load capacity up to 2 kN, dimensions Ø600 mm | RoOki 3,000 L; RoOki 5,000 L; RoOki 10,000 L
roto-dodatna-oprema-rezervoarji-za-vodo-extension-Ø600-x250.jpg | EXTENSION Ø600 x 250 mm [Code: 7100520630] | Extension in PE, dimensions Ø600 x 250 mm | RoOki 3,000 L; RoOki 5,000 L; RoOki 10,000 L
roto-dodatna-oprema-rezervoarji-za-vodo-couvercle-filete-dn600.jpg | THREADED WALKWAY COVER IN PE WITH HINGED OPENING DN600 [Code: 7600088710] | Threaded PE cover with hinged opening, telescopic PE extension (Ø600 x 400 mm) | Roterra, Roterra 2450, RoBox 5000 (all volumes)
roto-dodatna-oprema-rezervoarji-za-vodo-pokrov-dn-720.jpg | ASSEMBLED COVER DN720 [Code: 7100520240] | Cover in PE, load capacity up to 2 kN, dimensions Ø720 x 125 mm | RoCko; RoVoda; RoDrink (all volumes)
roto-dodatna-oprema-rezervoarji-za-vodo-adapter-dn-600-rocko.jpg | COVER ADAPTER DN600 [Code: 7100520310] | Adapter for cover in PE, dimensions Ø600 | RoCko; RoVoda; RoDrink (all volumes)
roto-dodatna-oprema-rezervoarji-za-vodo-peskolov.jpg | INSTALLED FILTRATION KIT [Code: 7100062480] / [Code: 7100062470] | Inlet/outlet pipe DN110/DN160 mm. Self-cleaning filter, overflow siphon, anti-slosh shoe. | indicative dimensions 300 x 150 x 150 mm
roto-dodatna-oprema-rezervoarji-za-vodo-filter-sito.jpg | SCREEN FILTER [Code: 7181530010] | Mesh filter mounted on the tank collar to retain leaves and coarse particles | Ø400 x 200 mm (example)
roto-dodatna-oprema-rezervoarji-za-vodo-filter-sanitary.jpg | FILTRATION SYSTEM FOR POTABLE WATER [Code: 7100065490] | System for potable water: removes mechanical particles, chlorine, taste and odour. Provision for UV installation | installed downstream/inlet of network or rainwater
roto-dodatna-oprema-rezervoarji-za-vodo-filter-non-charged.jpg | FILTRATION SYSTEM FOR NON-CHARGED WATER [Code: 7100092810] | Filtration and UV disinfection for network or rainwater; delivers purified and microbiologically safe water | -
roto-dodatna-oprema-rezervoarji-za-vodo-tesnila-1.jpg | PIPE SEALS (multiple references) | Seals for tank inlets/outlets: Ø50 / Ø110 / Ø125 / Ø160 / Ø200 mm and threaded connections 1/2" to 6/4" | Codes shown by diameter (e.g. [Code: 7100063580] for some diameters)
roto-dodatna-oprema-rezervoarji-za-vodo-merilec-nivoja-vode-basic.jpg | ULTRASONIC ELECTRONIC LEVEL GAUGE – BASIC [Code: 7100065560] | Measures tank water level via transceiver, LCD display | manufacturer Apolo (example)
roto-dodatna-oprema-rezervoarji-za-vodo-merilec-nivoja-vode-profi.jpg | ULTRASONIC ELECTRONIC LEVEL GAUGE – PROFI [Code: 7100063220] | Advanced ultrasonic gauge with level display and integration options | manufacturer Navis (example)

Notes

• The page lists multiple diameter variants (DN 400, 500, 600, 720, 800, 1000, etc.), telescopic extensions and adapters, and accessory models (RoOki, Roterra, RoCko, RoVoda, RoDrink by volume).
• Various filtration elements are offered: screen filters, potable-water filters (carbon, screens, UV), installed filtration kits for volumes (e.g. 6,000 L, 8,000 L depending on codes).

Technical characteristics / specifications

• Main material: polyethylene (PE) for covers, extensions, adapters and risers.
• Declared load capacity for covers: up to 2 kN (depending on model and size).
• Typical dimensions mentioned: Ø400 x 100 mm, Ø400 x 200 mm, Ø500 x 80 mm, Ø500 x 315 mm, Ø600 x 250 mm, Ø600 x 500 mm, Ø600 x 400 mm (telescopic), Ø720 x 125 mm, Ø855 x 130 mm, Ø1135 x 160 mm, etc.
• Product references and codes are provided for each accessory (e.g. 7100061710, 7100063580, 7104111660, 7104036060, 7100520610, 7100520630, 7600088710, 7113110700, 7100062480, 7181530010, 7100065490, 7100092810, 7100065560, 7100063220).
• Electronic gauges: ultrasonic sensors (BASIC and PROFI versions), transceiver signal, LCD display.
• Filters: mechanical mesh for leaves/branches, activated carbon and mesh for potable-water filtration, self-cleaning filters in some kits, UV options for disinfection.
• Pipe seals: available for multiple diameters (Ø50, Ø110, Ø125, Ø160, Ø200 mm) and threaded fittings (1/2" to 6/4").
• Inspection chambers: versions with or without filter and various dimensions (e.g. Ø400 x 800, Ø400 x 1000, Ø400 x 1500, Ø600 x 800, Ø625 x 1000, Ø625 x 1500, etc.).
• Tank compatibility: accessories referenced for ranges such as RoOki, Roterra (incl. Roterra 2450), RoBox, RoCko, RoVoda, RoDrink according to specified volumes.
