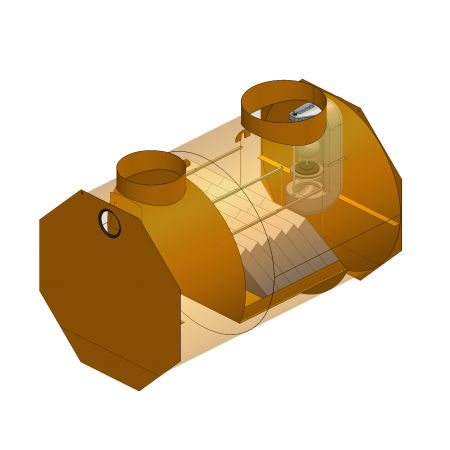

Steel oil separator SHDC01002

Certification: NF mark delivered by an independent body Reliability :Honeycomb longevity, coating quality Conformity: standards NF EN 858-1 and NF P16-451-1/CN Performance: honeycomb treatment effectiveness Easy to operate and maintain: total access Safety: large retention for oil, identification plate with equi-potential socket 10-year warranty via insurance supplemented by an Epers Pretreatment apparatus intended to intercept and accumulate the solid matter (sand...) and free oils. Lamellar oil separator class 1. Protected steel production after sanding SA 2.5 with a polyester powder coating. NF Mark Honeycomb polypropylene Made of S235 steel protected after SA 2,5 sanding according to ISO 8501-1 by an epoxy-polyester powder coating Coalescence on honeycomb lamellar blocks made of polypropylene Automatic shutter device made of stainless steel with lip seal, tared for oils with density of 0.85 Resistance class 1d according to NF P16-451-1/CN Connections: input by lip seal and output via total Manholes Ø 780 ou Ø 960 mm Sludge trap must be installed upstream of the separator The interceptor compartment is dimensioned for a free oil discharge less than 5 mg/l in the test conditions of standard EN 858-1 Visual and audible oil alarm - KAH05 Reinforcement for 1a to 1c implantation (groundwater) - REN Cathodic protection - ANODEINT et ANODEEXT EXTENSIONS - REH - COVERS - COU Aluminium ladder - ECH Anchor frame - CHASPE and straps - SAN
