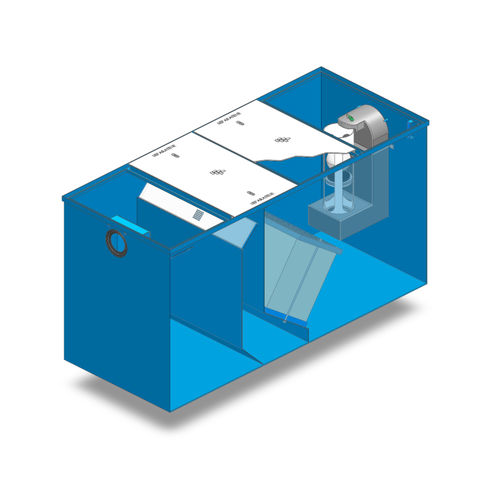

Steel oil separator IHDC

Conformity: standards NF EN 858-1 and NF P16-451-1/CN Certification: NF mark delivered by an independent body Performance: honeycomb treatment effectiveness Safety: large retention for oil, identification plate with equi-potential socket Easy to operate and maintain: total access Reliability: longevity of the cells, quality of the covering 10-year warranty via insurance supplemented by an Epers Pretreatment apparatus intended to intercept and accumulate the solid matter (sand...) and free oils. Lamellar sludge trap/oil interceptors class 1. Protected steel production after sanding SA 2.5 with a polyester powder coating. NF Mark Honeycomb polypropylene Stainless steel automatic shutter Equipotential Made of S235 steel protected after SA 2,5 sanding according to ISO 8501-1 by an epoxy-polyester powder coating Removable screening Coalescence on honeycomb lamellar blocks made of polypropylene Automatic closing-off device made of stainless steel with lip seal, tared for oils with density of 0.85 Class B125 buffers included in reference IHDC**B Class C250 buffers with adjustable frame included in reference IHDC**C Resistance class 1a according to NF P16-451-1/CN Connections: input by lip seal and output via total Access pipe The trap compartment is calculated in such a way as to obtain a usable volume of 100 to 300 litres x TN The interceptor compartment is dimensioned for a free oil discharge less than 5 mg/l in the test conditions of standard EN 858-1 Steel risers - REH or adjustable composite - REHP Visual and audible oil alarm - KAH05 Oil removal device - KEM
