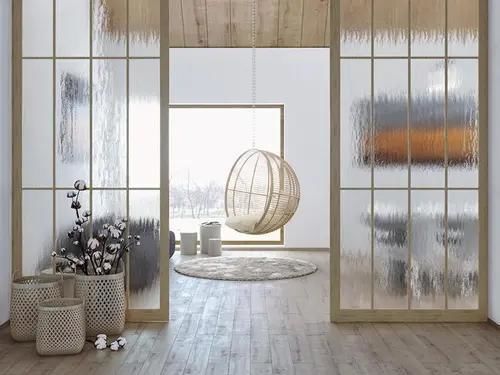

Safety glass panel DECORGLASS®

acousticlaminateddouble-glazed

Description
The DECORGLASS® range comprises patterned printed translucent glass manufactured by roller lamination. These patterned translucent glasses balance light transmission and visual privacy while enhancing interior design.

Applications
Suitable for residential and commercial interiors, offices, hospitality and retail environments.

• Interior fittings: fixed and sliding partitions, glazed interior doors, shower and bath screens, balustrades, stair treads, floor panels.
• Furniture: tabletops, shelving, cabinets, office furniture, reception counters, wardrobe doors.
• Exterior applications: windows, entrance doors, façade cladding and balustrades, street furniture, balcony screens.

Advantages
The range of motifs enables classic, timeless or contemporary ambiances. Depending on the pattern, transparency is more or less reduced, providing adjustable privacy levels. This property is expressed by the Visual Screen Coefficient (VSC): H (High) highest screening, M (Medium), L (Low) lowest screening.

Technical characteristics (extracts and tables)
Range: DECORGLASS® is organised into four trends: Nature, Cocoon, Urban, Lounge.
Printed glasses optimised for tempering or lamination.

Table 1 — Optimised printed glasses (extract)
Name | Thk. (mm) | Dimensions (mm) | VSC | Collection | Temperable Y/N | Laminable MF (or SR+) | Print face position
ARENA C (1) | 4 | 3200 x 2000 | M | Cocoon | Yes | SR+ | 1,2,3,4
ARENA C | 6 | 3210 x 2000 | M | Cocoon | Yes | Yes | 1,2,3,4
ARENA C (2) | 4 | 3210 x 2400 | M | Cocoon | Yes | Yes | 1,2,3,4
ESTRIADO | 6 | 3210 x 1650 | L | Urban | Yes | Yes | 1,4
ESTRIADO | 8 | 3400 x 2040 | L | Urban | Yes | Yes | 1,4
THELA | 4-6 | 3210 x 2000 | M | Lounge | Yes | Yes | 1,2,3,4
VISIOSUN CLASSIC | 4-6-8 | 3210 x 2000 | H | Urban | Yes | Yes | 1,4
VISION | 4 | 3210 x 2000 | L | Cocoon | Yes | Yes | 1,2,3,4
WAVELINE FLUID | 4 | 3210 x 2000 | L | Nature | Yes | Yes | 1,4

Table notes: SR = quality dedicated to tempering; SR+ = quality dedicated to laminated assembly; MF = Fixed measurement.

Table 2 — Printed glasses (extract)
Name | Thk. (mm) | Dimensions (mm) | VSC | Collection | Temperable Y/N | Laminable MF | Print face position
ALTDEUTSCH K | 4 | 3200 x 1650 | L | Lounge | No | No | 1,2,3,4
ANTIQUE | 4 | 2160 x 1650 | L | Lounge | No | No | 1,2,3,4
ESTRIADO | 4 | 3200 x 1650 | L | Urban | No | No | 1,4
KATHEDRAL MIN | 4 | 3300 x 2040 | M | Cocoon | No | No | 1,2,3,4
KRALIKA | 4 | 3300 x 1650 | H | Nature | No | No | 1,2,3,4
MARTELE | 4 | 3300 x 1880 | H | Cocoon | No | No | 1,2,3,4
MONUMENTAL M | 4 | 2160 x 1650 | H | Nature | No | No | 1,2,3,4
PICTO | 2 | 1600 x 1270 | - | - | No | No | -
SILVIT | 4 | 3300 x 2160 | M | Cocoon | Yes (O) | No | 1,4

Table 3 — Wired glass (extract)
Name | Thk. (mm) | Dimensions (mm) | VSC | Collection | Temperable Y/N | Laminated Y/N | Print face position
WIRED 1/2'' | 6 | 3300 x 2040 | H | Urban | No | No | N
WIRED 1'' | 6 | 3300 x 2040 | H | Urban | No | No | N

Table 4 — Printed laminated safety glass (extract)
Name | Thk. (mm) | Dimensions (mm) | VSC | Collection | Temperable Y/N | Laminated Y/N (or Y with ref. SR+) | Print face position
STADIP PROTECT ARENA C | 9 - 44.2 | 3210 x 2400 | M | Cocoon | Y | SR+ | 1,2,3,4

Installation (extracts)
Cutting: all printed glasses have an orientation. For a uniform aesthetic result, respect the printing direction during cutting and align panels in the same direction.
Assembly: to ease maintenance, it is recommended to place the printed face on face 2, 3 or 4 of the insulating glass unit.
Note: installation of WIRED range above heat sources is strongly discouraged. In humid or polluted environments, the edges of WIRED glass must be protected.

Standards
DECORGLASS® products comply with EN 572-5 (printed glass) and EN 572-6 (printed wired glass) requirements. They must be installed in accordance with applicable safety standards and regulations.

Characteristics / technical specifications

• Range: Nature, Cocoon, Urban, Lounge.
• Light transmission: between approximately 70% and 90% depending on pattern and thickness.
• Visual Screen Coefficient (VSC): classes H (High), M (Medium), L (Low).
• Tempering: several models optimised for tempering (SR, SR+ depending on model).
• Transformations available: insulating glass assembly, laminated safety assemblies (STADIP®, STADIP PROTECT), acoustic laminated (STADIP SILENCE), tempering, enamelling, edgework, bending, lacquering, sandblasting.
• Standards compliance: EN 572-5 and EN 572-6.
