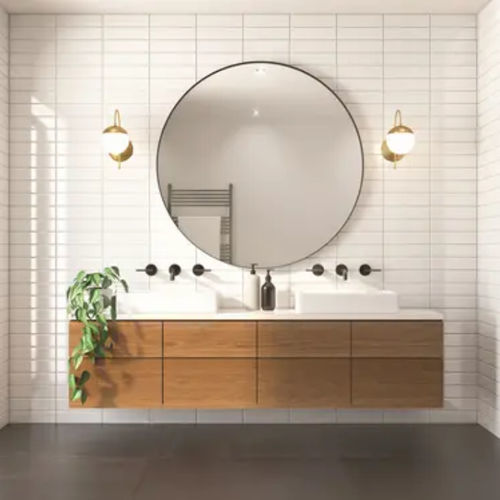

Wall-mounted mirror MIRALITE® PURE

commercialfor officefor hotel

Overview
MIRALITE® PURE by Saint-Gobain Glass is a mirror designed without added lead and with very low emissions of volatile organic compounds (VOC). Based on PLANICLEAR® glass for optimal light transmission and neutral reflection, it diffuses light in interior spaces and contributes to a visually enlarged volume. More opaque than a conventional mirror, it provides extended durability while supporting improved indoor air quality.

Applications

• Domestic: bathrooms, corridors, furniture (wall cladding, cabinets, shelves).
• Commercial: offices, beauty salons, hotels, restaurants, gyms, elevators.
• Customization: multiple cutting and shaping options, framed or unframed forms, supplied as single pieces, wall panels or furniture cladding.

Fixing methods

• Rebate mounting in a profile: ensure the profile is clean and dry; support the mirror on pads of at least 3 mm to avoid contact with water and condensation.
• Bracket fixings: use suitable fixings, avoid direct glass-metal contact by inserting synthetic washers or spacers; tighten without stressing the glass.
• Adhesive bonding: use adhesives that have been positively tested (recommended references listed below).
• Double-sided adhesive tapes: use the recommended tapes/adhesives (references listed below).

Maintenance
Avoid aggressive products (strong acids, strongly alkaline or abrasive solutions). Prevent residues of cleaning products from accumulating on the mirror edges.

Safety and installation recommendations
The MIRALITE® PURE mirror must be installed in accordance with applicable regulations and installation guidelines. Use of a laminated/shatter-resistant film is often required. Regardless of the fixing method:

• Install on a stable, clean, dry and perfectly flat support.
• Provide ventilation between the wall support and the mirror: 5 mm for mirrors < 1 m high, 10 mm for larger mirrors.
• Leave a gap of 1 to 2 mm between adjacent mirrors.
• Avoid proximity to heat sources (lighting, heaters, etc.).
• The combination of adhesive + tape is recommended for a durable and secure installation.

Benefits

• Manufactured from 30% recycled glass (cullet).
• Reduced paint volume (20% less lacquer than a standard mirror) thanks to a single-layer deposition.
• 70% fewer solvents compared to a standard mirror; protective lacquer is water-based.
• No aromatic solvents such as xylene in the protective layer.
• Extremely low VOC emissions (indoor air quality: < 10 μg/m3).
• Good corrosion resistance; durability exceeding EN 1036 requirements.
• Suitable for backlit mirrors: fully opaque reverse side, compatible with LED backlighting.
• Multiple processing options: shaping, cutting without chipping or fraying.

Documentation and compliance
Environmental and Health Declaration Sheets (FDES) available. Product included in the "les engagés" range (performance regarding energy, resources & circularity, health and well-being).

Technical characteristics (summary)
3 tints: Clear, Bronze, Grey.
Panel sizes (examples): 3 210 x 2 000 mm; 3 210 x 2 250 mm; 3 210 x 2 440 mm; 3 210 x 2 500 mm; 3 210 x 2 550 mm.
Available thicknesses (tolerances): 2, 3, 4, 5 and 6 mm ±0.2 mm; 8 mm ±0.3 mm.

Recommended adhesives (examples)

• ATE – ATE SBR Bond
• Bostik – Bostik MSP 108
• DL Chemicals – DL Chemicals Paracol Miroseal MS
• Dow Corning – Dowsil 817 Mirror Adhesive (High Modulus)
• Fratelli Zucchini – MS Super
• Hodgson – Mirror Adhesive
• Kawo – SK86 Transparent
• Lakma – Do Luster / Modesil L
• Otto-Chemie – Ottocol S16
• Torggler – Mirror
• Würth – Hybrid Adhesive Mirror (0893231000)

Recommended adhesive tapes (examples)

• 3M – 4026, 4032, 4910F VHB
• Adhex – P270
• Bohle – Xtracryl
• CEYS – Montack
• Lohmann – DuploCOLL 5009, DuploCOLL 5015, DuploCOLL 918
• Pattex – No mas clavos
• Saint-Gobain Tape Solutions – H-Old 8920
• Tesa – Powerbond, Powerstrip
• Viba – 6606
