Mirror effect glass panel MIRASTAR®

laminatedtemperedfloat

Presentation
MIRASTAR® is a coated mirror-effect glass produced by magnetron deposition of metal oxides onto transparent PLANICLEAR® float glass. It provides high reflection levels creating contemporary mirror effects: depending on lighting conditions it can appear highly reflective (mirror effect) or transparent (open vision glazing). MIRASTAR® enables privacy control through one-way transparency and delivers unique decorative and luminous effects.

Applications

• Frameless mirrors: temperable, suitable for fully glazed and unframed mirror doors and partitions; can be thermally toughened to meet safety requirements (including transport: trains, buses, ships).
• Exterior decoration: not intended as vision glazing for exterior windows, façades or entrance doors but usable outdoors for decorative elements (spandrels, balustrades).
• Kitchens & bathrooms: resistant to humidity and corrosion, withstands cleaning products; suitable for high-humidity areas including marine environments.
• One-way/observation mirror: permits view from one side without being seen from the other under appropriate lighting conditions.
• Shower screens: with appropriate lighting and after tempering, offers full-height aesthetic and privacy shower enclosures.

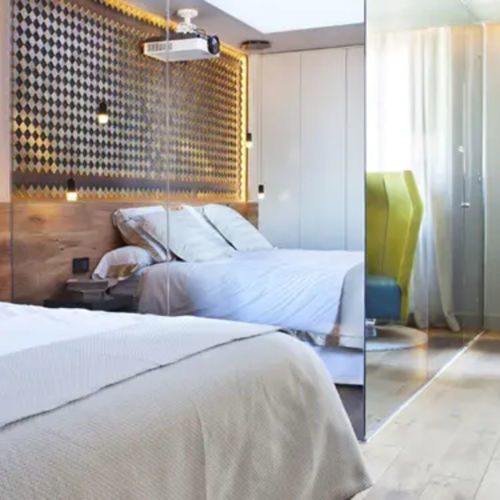

• Doors, partitions, space dividers: innovative solution alternating reflection and transparency for original interior layouts.
• Furniture and appliances: used to create internal lighting effects in cabinets or on appliance fronts (oven doors, illuminated furniture façades).
• Infinity mirror: enables infinite reflection effects thanks to its mirror/transparency properties.

Benefits
MIRASTAR® offers strong reflectivity and distinctive mirror effects. It features high durability, good resistance to humidity and corrosion, and compatibility with common cleaning products. Available in formats adapted for processing (PLF), it can be cut, shaped, laminated and tempered as required for safety.

Product information tables
Available formats (PLF)
Thicknesses (mm): 4, 5, 6, 8, 10
Length (mm): 6 000
Width (mm): 3 210

Optical characteristics (according to EN 410)
Visible light transmittance: 3%
Light reflection glass side: 55%
Light reflection coating side: 59%

Standards and tests
Compliant with class A of the European standard EN 1096-1 for coated glass with tests including:

• Abrasion resistance test
• Acid resistance test
• Condensation resistance test
• Neutral salt spray test

Processing and installation
The MIRASTAR® range is designed for multiple processing operations (cutting, edging, laminating, tempering). Installation must comply with applicable safety standards and regulations. Optical characteristics may be slightly altered after tempering.

Characteristics / technical specifications

• Commercial name: MIRASTAR®
• Type: coated mirror-effect glass (magnetron deposition of metal oxides on PLANICLEAR® float glass)
• Available thicknesses: 4, 5, 6, 8, 10 mm
• Standard PLF format: 6 000 x 3 210 mm (other sizes available on request)
• Visible light transmittance (EN 410): ~3%
• Light reflection glass side: ~55%
• Light reflection coating side: ~59%
• Durability: good resistance to humidity and corrosion
• Processability: cuttable, edgeable, laminable and temperable
• Compliance: EN 1096-1 (class A)
• Recommended uses: decorative mirrors, partitions, interior doors, shower screens, furniture, non-structural exterior decorative elements
