Electric water heater AE200TNWTEH/EU

integratedverticalfor PV applications

Overview

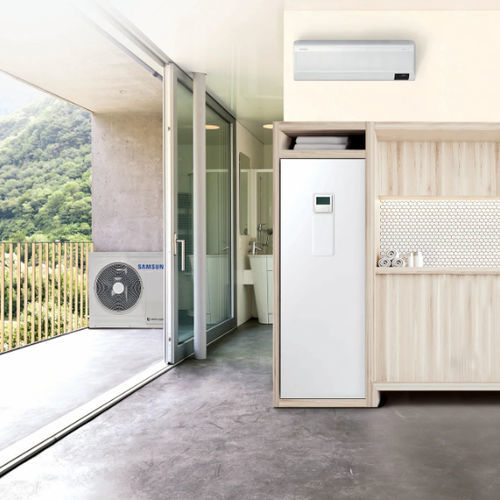

The TDM Plus ClimateHub is a tank-integrated hydro unit (split type) engineered as a compact heat pump solution for domestic hot water (DHW) and space heating. The unit combines a hydro/control kit with a large hot water tank and associated piping, enabling installation in confined indoor spaces such as kitchens or utility rooms. Capacities available: 200 L (standard) and 260 L (option). Single-phase power supply variants are provided.

Key Benefits & Features

• Compact footprint for simplified handling and installation
• Tank-integrated hydro unit combining hydro components and DHW tank
• PV- and Smart Grid-ready integration
• Intuitive touch controller with multi-language support
• Optional Wi‑Fi kit for remote control and monitoring via Samsung SmartThings (Wi‑Fi kit ordered separately)
• 4‑Step Quiet Mode for selectable low-noise operation

Easy installation and convenient control
The ClimateHub Mono, Split and TDM Plus series are designed for reduced space requirements and straightforward maintenance. The touch controller provides a bright color display, temperature settings, energy monitoring, summer mode and quick error diagnostics. Independent temperature settings per zone support efficient use of radiators and underfloor heating. Controller languages include English, German, French, Italian, Spanish, Polish, Portuguese, Dutch, Greek, Czech, Slovak, Finnish, Swedish, Norwegian, Danish and Lithuanian.

Smart connectivity
With the optional Wi‑Fi kit (ordered separately), users can remotely control and monitor up to 16 indoor units via the Samsung SmartThings app. Wi‑Fi connection and a SmartThings account are required. Compatible with iOS 10.0 or later and Android 5.0 or later.

Quiet operation
The 4‑Step Quiet Mode provides selectable noise reduction levels (approx. -3 dB(A), -5 dB(A), -7 dB(A)) or maintains sound levels as low as 35 dB(A) depending on the outdoor unit model and operating conditions. Actual noise levels vary with capacity and environmental factors.

Technical specifications

• Model (commercial denomination): AE200TNWTEH/EU
• Type: Split type, Tank-integrated hydro unit
• Mode: Heat Pump (A2W)
• Available tank capacities: 200.0 L (selected); 260.0 L (option)
• Available power: 1 Phase (selected)
• Power supply (indoor unit): 220~240 V, 50 Hz, 1 Φ
• Current input: Cooling: 0.9 A; Max Cooling 1): 0.9 A; Heating: 0.9 A; Max Heating 2): 22.7 A
• Capacity (rated): Cooling 8.7 kW; Max Cooling 8.7 kW; Heating 9.0 kW; Max Heating 9.0 kW
• Power: MCA (Minimum Circuit Ampacity) 22.7 A; MFA (Maximum Fuse Amps) 28.4 A
• Power input: Cooling 1) 0.2 kW; Max Cooling 1) 0.2 kW; Heating 2) 0.2 kW; Max Heating 2) 5.2 kW
• Refrigerant piping connections (split): Type: Flare nut; Liquid pipe Ø: 9.52 mm; Gas pipe Ø: 15.88 mm
• Space heating piping connections: Type: Straight pipe; Liquid pipe Ø: 28 mm; Gas pipe Ø: 28 mm
• DHW piping connections: Type: Straight pipe; Liquid pipe Ø: 22 mm; Gas pipe Ø: 22 mm
• Water heating declared load profile: L
• Energy efficiency class (water heating): A+
• DHW tank nominal volume: 200 L
• DHW tank net volume: 194 L
• DHW tank material: SUS 316L (stainless steel)
• DHW tank max. water pressure: 10 bar
• DHW tank max. water temperature: 70 °C
• Immersion heater (booster) capacity: 3 kW
• Tank insulation: PU Foam
• Backup heater options: 2 kW (standard), optional 4 kW / 6 kW
• Backup heater thermal fuse: 75 (93) °C
• Safety devices: Relief valve pressure 2.9 bar; Flow sensor: ○ (5~60 LPM); Temperature & pressure relief valve (tank): 7 bar, 90 °C
• Thermostat (immersion heater): Normal temp (factory set) 80 °C; Manual action temp 90 °C; Auto on 15±3 °C
• Expansion vessel internal volume: 8 L; Working pressure: 0.3 MPa
• Primary water pump: Type BLDC Inverter; Max. static pressure: 9.5 mAq
• Water heat exchanger: Type Brassed Plate Exchanger; Internal water volume: 1.01 L (water side) / 0.98 L (refrigerant side)
• IP class: IPX1
• Sound: Sound pressure 29 dBA; Sound power level 43 dBA
• Indoor unit net weight: 137 kg
• Indoor unit dimensions (WxHxD): 595 x 1,800 x 700 mm
• Operating temperature ranges: Cooling 10 ~ 46 °C; Heating -25 ~ 35 °C; Domestic Hot Water -25 ~ 43 °C
• Leaving water temperature: Heating 15 ~ 55 °C; Cooling 5 ~ 25 °C
• Smart features (built-in): WiFi Embedded: N/A; Bluetooth: N/A; WiFi Kit: N/A (WiFi kit available as optional accessory)
• App connectivity: SmartThings App support: N/A (requires optional WiFi kit)
